SKU: UCFB209-26

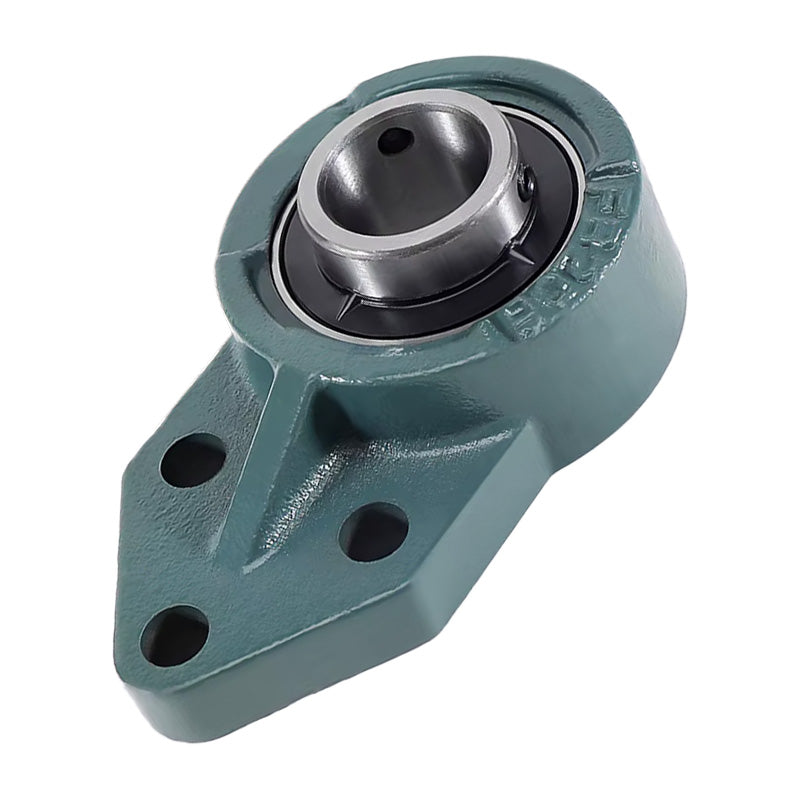

UCFB209-26 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-5/8 inch Bore
UCFB209-26 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-5/8 inch Bore
Regular price
$52.20
ex VAT
Regular price
Sale price
$52.20
ex VAT
In stock
Price Break
3+
$24.75
4+
$23.36
9+
$23.09
19+
$22.81
49+
$22.53
99+
$22.25
499+
$20.86
999+
$20.58
1999+
$20.30
2999+
$20.03
4999+
$19.47
Quantity
Couldn't load pickup availability
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Style:
- UCFB
- Bolt Hole Centres:
- 53.98mm = 2.125 (2-1/8) inch
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| w | 6-27/32 inch |
| b | 4-3/16 inch |
| k | 3 inch |
| a | 3-5/32 inch |
| l | 1-1/2 inch |
| s | 15/32 inch |
| g | 23/32 inch |
| h | 2-9/16 inch |
| j | 1-11/16 inch |
| e | 2-1/8 inch |
| i | 55/64 inch |
| z | 2-1/16 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC209-26 |
| Housing no | FB209 |
| Weight | 2.024 kg |
