SKU: UCFA212-38

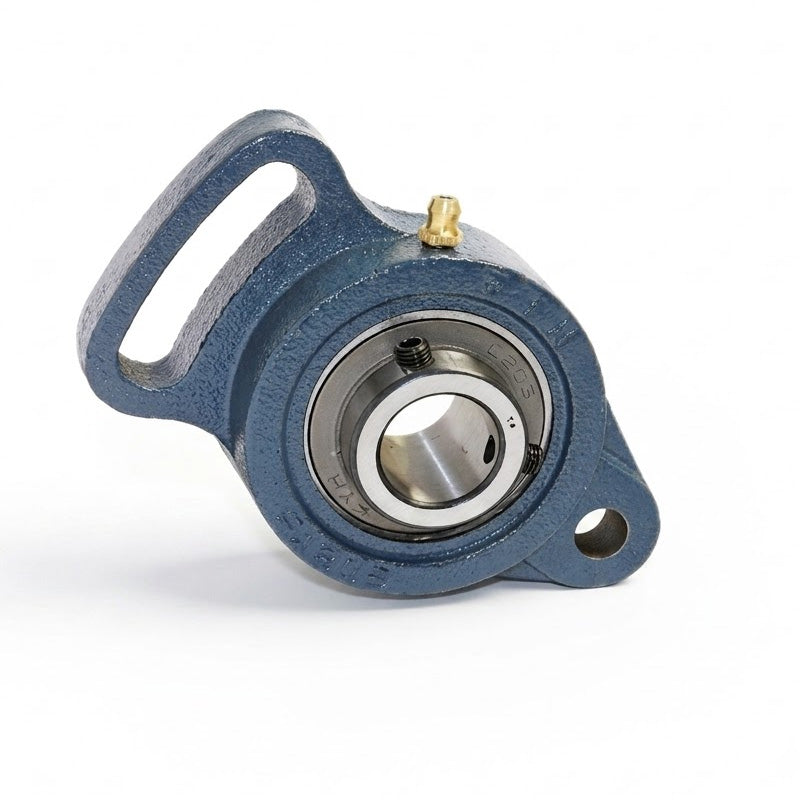

UCFA212-38 Imperial Cast Iron Adjustable Flange Unit with 2-3/8 inch Insert
UCFA212-38 Imperial Cast Iron Adjustable Flange Unit with 2-3/8 inch Insert
Regular price
$79.26
ex VAT
Regular price
Sale price
$79.26
ex VAT
In stock
Price Break
3+
$37.58
4+
$35.47
9+
$35.05
19+
$34.63
49+
$34.20
99+
$33.78
499+
$31.67
999+
$31.25
1999+
$30.83
2999+
$30.40
4999+
$29.56
Quantity
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 202.01mm = 7.953 (7-61/64) inch

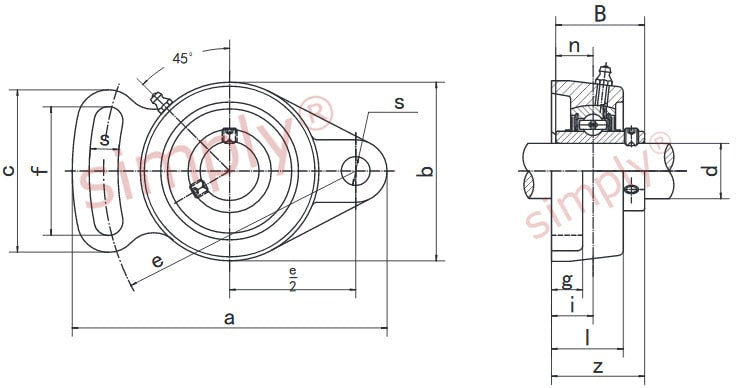

Technical
Technical
| d | 2-3/8 inch |
|---|---|
| a | 9-29/64 inch |
| e | 7-61/64 inch |
| i | 1-9/64 inch |
| g | 25/32 inch |
| l | 1-7/8 inch |
| s | 3/4 inch |
| b | 5-1/2 inch |
| z | 2-23/32 inch |
| f | 3-15/16 inch |
| c | 4-41/64 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bolt size | 5/8 inch |
| Bearing no | UC212-38 |
| Housing no | FA212 |
| Weight | 3.74 kg |
