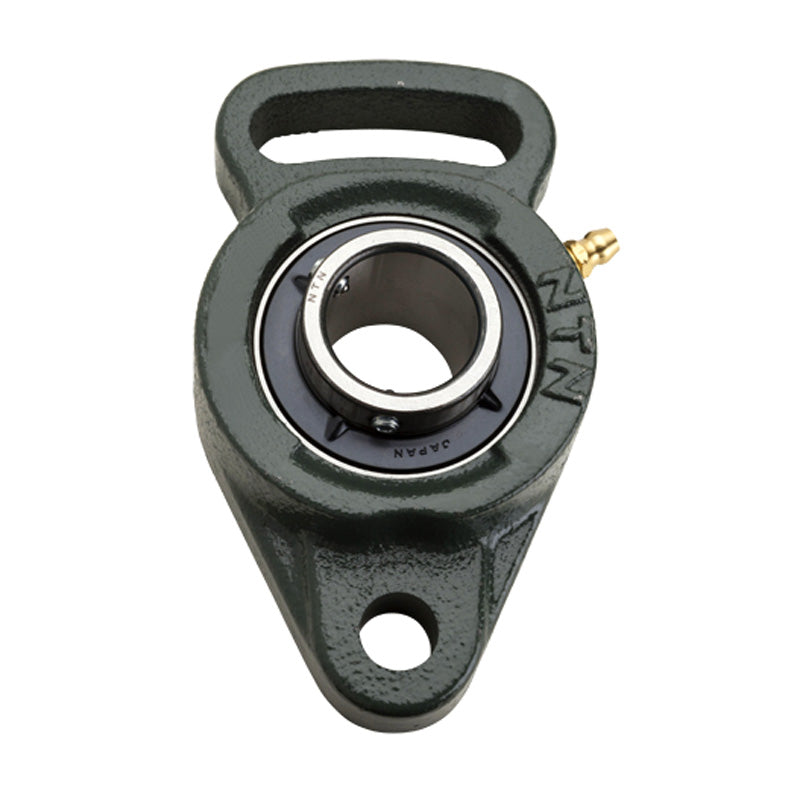

NTN UCFA204-012D1 Imperial Cast Iron Adjustable Flange Unit with 3/4 inch Insert - Allow 2-3 Days
NTN UCFA204-012D1 Imperial Cast Iron Adjustable Flange Unit with 3/4 inch Insert - Allow 2-3 Days
Out of stock
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 3-1/16 inch
Technical
Technical
| Shaft diameter | 3/4 inch |
|---|---|
| H | 3-27/32 inch |
| J | 3-1/16 inch |
| A<sub>2</sub> | 19/32 inch |
| A<sub>1</sub> | 15/32 inch |
| A | 1 inch |
| N | 25/64 inch |
| N<sub>1</sub> | 1-9/16 inch |
| L | 2-3/8 inch |
| L<sub>1</sub> | 1-31/32 inch |
| A<sub>0</sub> | 1-5/16 inch |
| B | 1.2205 inch |
| S | 0.5 inch |
| Fixing bolt | 5/16 inch |
| Mass | 1.1 lbs |
