SKU: UCF324D1-NTN

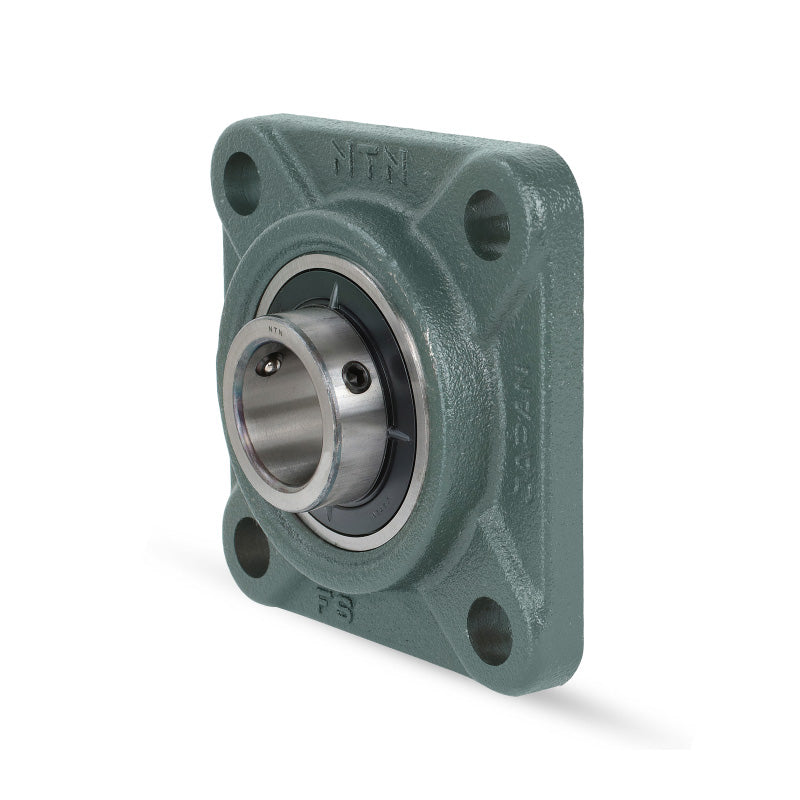

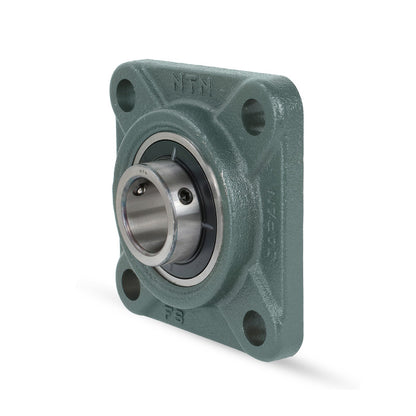

NTN UCF324D1 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
NTN UCF324D1 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
Regular price
$1,362.33
ex VAT
Regular price
Sale price
$1,362.33
ex VAT
In stock
Price Break
3+
$646.02
4+
$609.72
9+
$602.46
19+
$595.21
49+
$587.95
99+
$580.69
499+
$544.40
999+
$537.14
1999+
$529.88
2999+
$522.62
4999+
$508.10
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Style:
- UCF
- Bolt Hole Centres:
- 290mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 120mm |
| L | 370mm |
| J | 290mm |
| A<sub>2</sub> | 65mm |
| A<sub>1</sub> | 40mm |
| A | 110mm |
| N | 41mm |
| A<sub>0</sub> | 140mm |
| B | 126mm |
| S | 51mm |
| Fixing bolt | M36 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 229 kN |
| Static load C<sub>0r</sub> | 185 kN |
| Fatigue load limit C<sub>u</sub> | 10.5 kN |
| --- | Unit information |
| Mass | 48 kg |
