SKU: UCF214D1-NTN

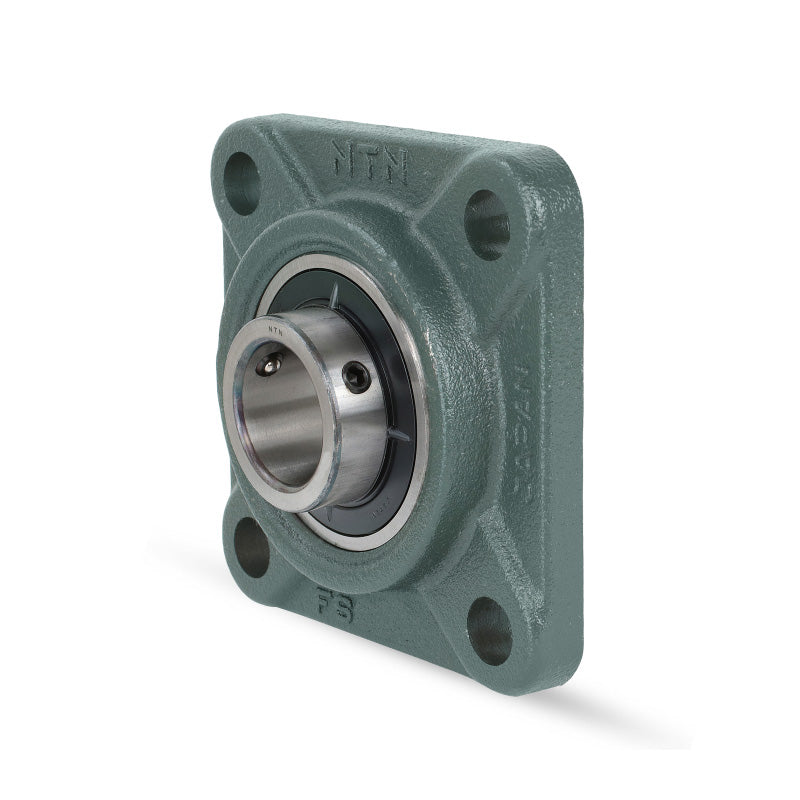

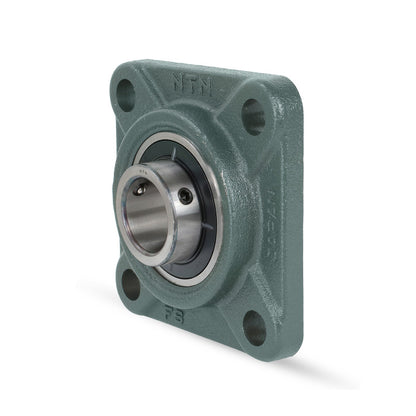

NTN UCF214D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
NTN UCF214D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
$170.81
ex VAT
Regular price
Sale price
$170.81
ex VAT
In stock
Price Break
3+
$81.00
4+
$76.45
9+
$75.54
19+
$74.63
49+
$73.72
99+
$72.81
499+
$68.26
999+
$67.35
1999+
$66.44
2999+
$65.53
4999+
$63.71
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCF
- Bolt Hole Centres:
- 152mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| L | 193mm |
| J | 152mm |
| A<sub>2</sub> | 31mm |
| A<sub>1</sub> | 22mm |
| A | 54mm |
| N | 19mm |
| A<sub>0</sub> | 75.4mm |
| B | 74.6mm |
| S | 30.2mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 6.3 kg |
