SKU: UCF212-206D1-NTN

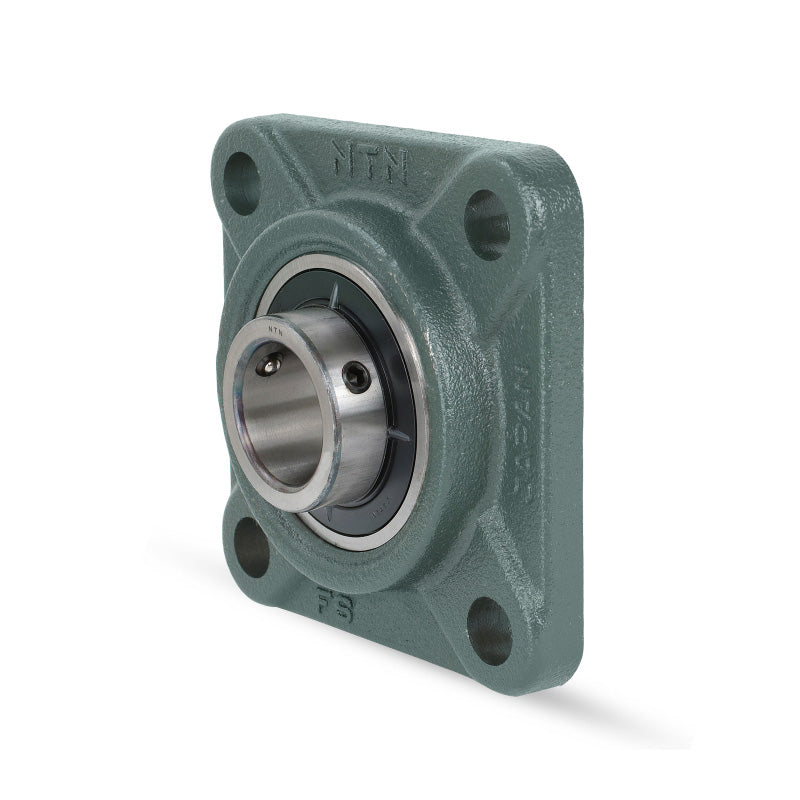

NTN UCF212-206D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/8 inch Bore Insert - Allow 2-3 Days
NTN UCF212-206D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-3/8 inch Bore Insert - Allow 2-3 Days
Out of stock
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCF
- Bolt Hole Centres:
- 5-5/8 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-3/8 inch |
| L | 6-7/8 inch |
| J | 5-5/8 inch |
| A<sub>2</sub> | 1-9/64 inch |
| A<sub>1</sub> | 23/32 inch |
| A | 1-7/8 inch |
| N | 3/4 inch |
| A<sub>0</sub> | 2-45/64 inch |
| B | 2.563 inch |
| S | 1 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58 kN |
| Static load C<sub>0r</sub> | 36 kN |
| Fatigue load limit C<sub>u</sub> | 2.83 kN |
| --- | Unit information |
| Mass | 8.6 lbs |
