SKU: UCF209L3-SNR
SNR UCF209L3 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCF209L3 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
$131.15
ex VAT
Regular price
Sale price
$131.15
ex VAT
In stock
Price Break
3+
$62.19
4+
$58.70
9+
$58.00
19+
$57.30
49+
$56.60
99+
$55.90
499+
$52.41
999+
$51.71
1999+
$51.01
2999+
$50.31
4999+
$48.92
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCF
- Bolt Hole Centres:
- 105mm
Technical
Technical

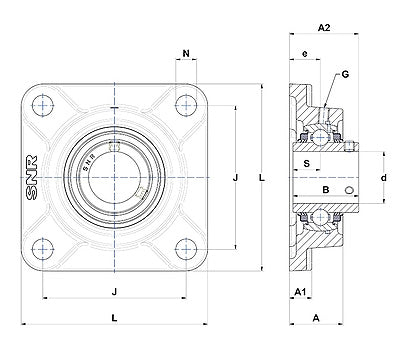

| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A1 | 16mm |
| A2 | 52.2mm |
| B | 49.2mm |
| e | 22mm |
| J | 105mm |
| L | 137mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.12 kg |
