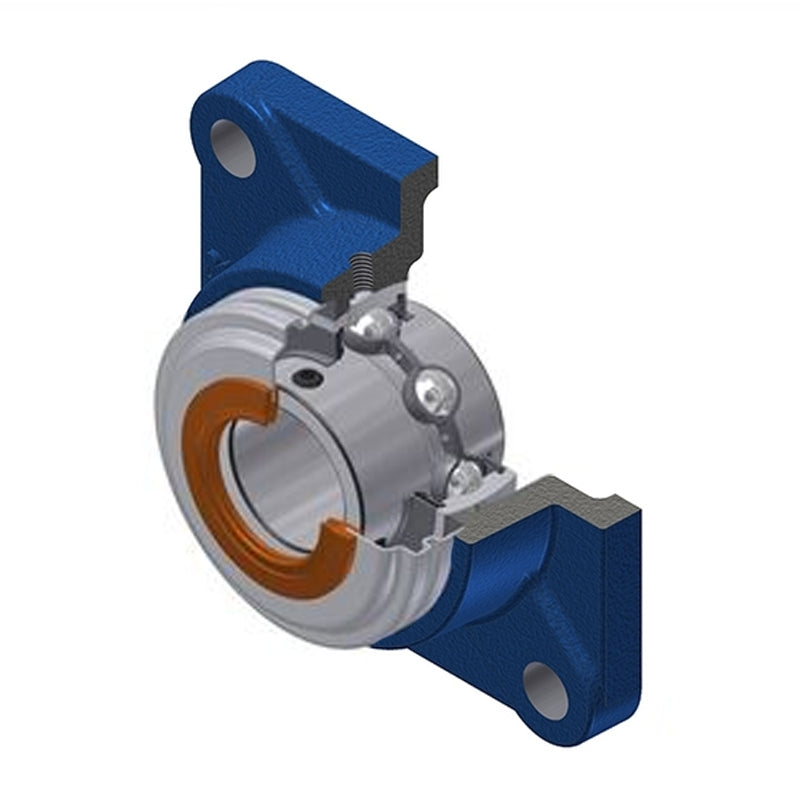

• SNR UCF209CO Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCF209CO-SNR

SNR UCF209CO Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCF209CO Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$97.69 ex VAT
$97.69 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.33
4+ $43.72
9+ $43.20
19+ $42.68
49+ $42.16
99+ $41.64
499+ $39.04
999+ $38.52
1999+ $38.00
2999+ $37.48
4999+ $36.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCF
Bolt Hole Centres:
105mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 38mm
A1 16mm
A2 52.2mm
B 49.2mm
e 22mm
J 105mm
L 137mm
N 16mm
S 19mm
Dz 95mm
Z 56.3mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.12 kg
