• SNR UCF206CO Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
  • SNR
1 2

SKU: UCF206CO-SNR

SNR UCF206CO Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCF206CO Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$83.22 ex VAT
$83.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

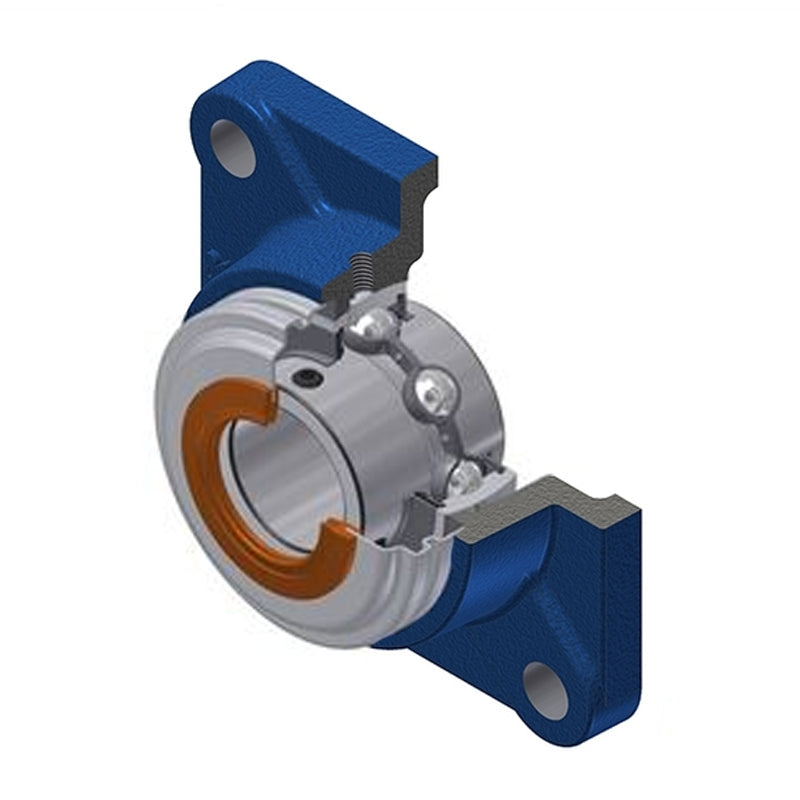

UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCF
Bolt Hole Centres:
83mm
Technical

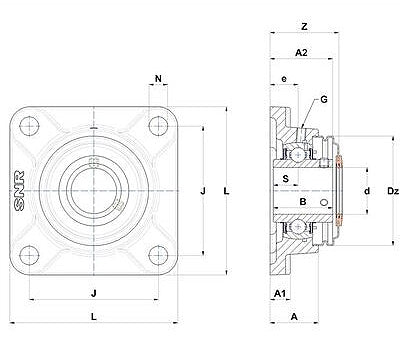

--- Dimensions
Shaft diameter d 30mm
A 31mm
A1 13mm
A2 40.2mm
B 38.1mm
e 18mm
J 83mm
L 108mm
N 12mm
S 15.9mm
Dz 70mm
Z 44.2mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.11 kg
