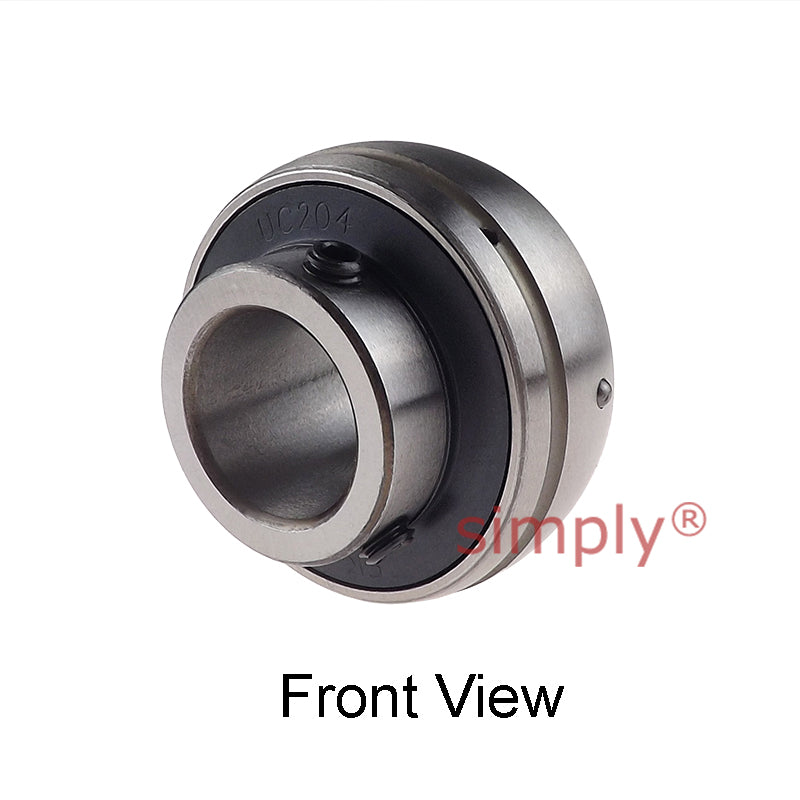

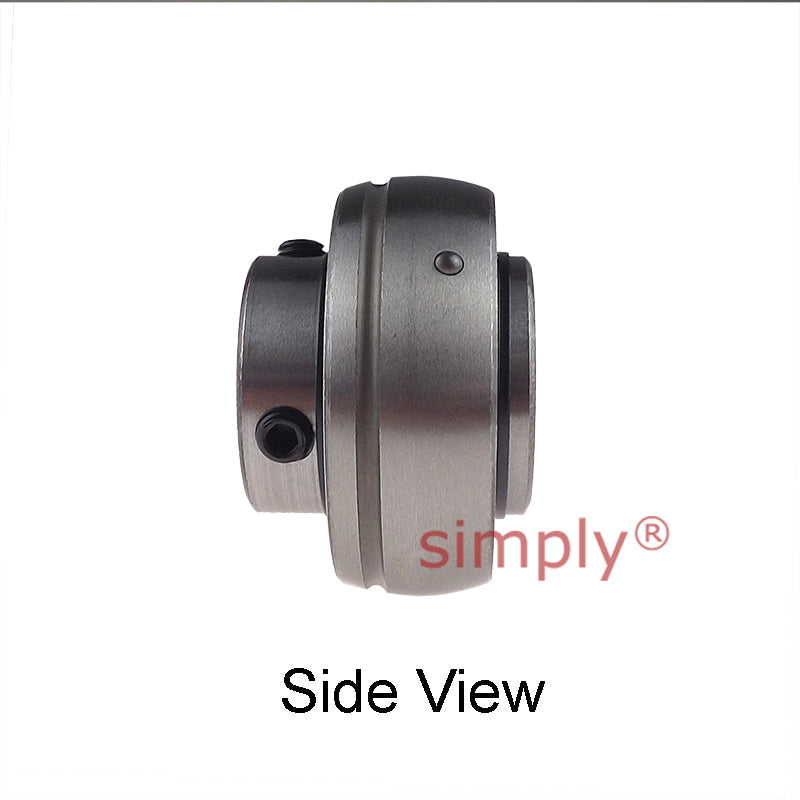

• UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
  • UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
1 2

SKU: UC.204

UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia

UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
$10.00 ex VAT
$10.00 ex VAT
Sale Sold out

Equivalent to: 1020-20G

In stock

Price Break
3+ $4.75
4+ $4.48
9+ $4.43
19+ $4.37
49+ $4.32
99+ $4.27
499+ $4.00
999+ $3.95
1999+ $3.89
2999+ $3.84
4999+ $3.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Style:
UC

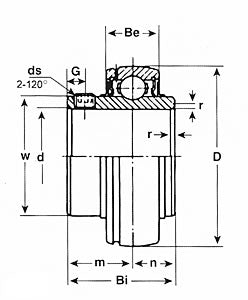

Technical
d 20mm
D 47mm
Bi 31mm
Be 17mm
n 12.7mm
m 18.3mm
G 4.8mm
Grub screw M6x1
Weight 0.21 kg
Dynamic load 1000 kgf
Static load 630 kgf
Rec max speed 7450 rpm
