SKU: TU35TF-SKF

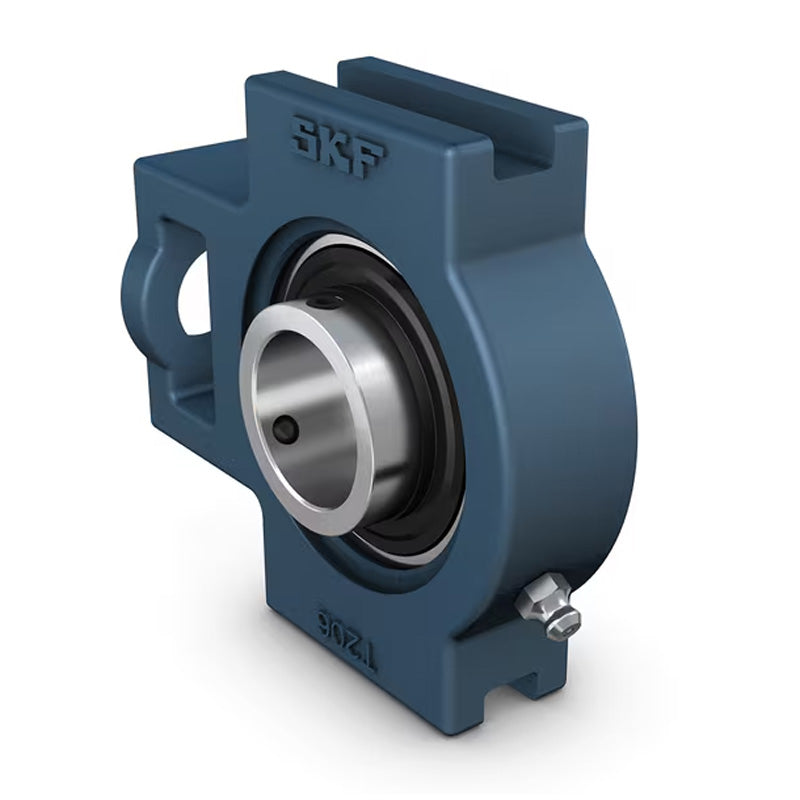

SKF TU35TF Grub Screw Type Take Up Unit 35mm Bore
SKF TU35TF Grub Screw Type Take Up Unit 35mm Bore
Regular price
$131.89
ex VAT
Regular price
Sale price
$131.89
ex VAT
In stock
Price Break
10+
$62.54
20+
$59.02
30+
$58.32
40+
$57.62
50+
$56.92
75+
$56.21
100+
$52.70
200+
$52.00
250+
$51.29
500+
$50.59
1000+
$49.19
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- TU

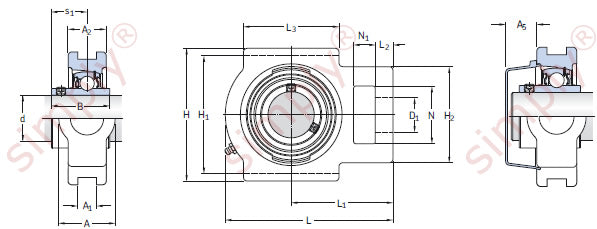

Technical
Technical
| d | 35mm |
|---|---|
| A | 37mm |
| A1 | 13.5mm |
| A2 | 30mm |
| B | 42.9mm |
| D1 | 22mm |
| H | 103mm |
| H1 | 89mm |
| H2 | 64mm |
| L | 129mm |
| L1 | 78mm |
| L2 | 12mm |
| L3 | 64mm |
| N | 38mm |
| N1 | 17mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.45 kg |
| Compatible end cover | ECY207 |
