SKU: TSF16-ISB
ISB TSF16 Right Hand Maintenance Required Steel/Bronze Plain Female Rod End M16 Thread
ISB TSF16 Right Hand Maintenance Required Steel/Bronze Plain Female Rod End M16 Thread
Equivalent to: TSF16
Out of stock
Share this product
Description
Description
TSF - TSM Series Rod End Bearings:: This series is constructed with C 45 improved and forged steel; the surfaces are protected from external corrosive agents, thanks to a galvanised zinc covering. They are available with internal and external threading, to the right and the left and they are provided with greasers or bores for lubrication.
- Brand / Quality:
- ISB-Good Quality
- Thread Size:
- M16x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Bore:
- 16
- Inside Diameter:
- 16
- Material:
- Steel/Bronze

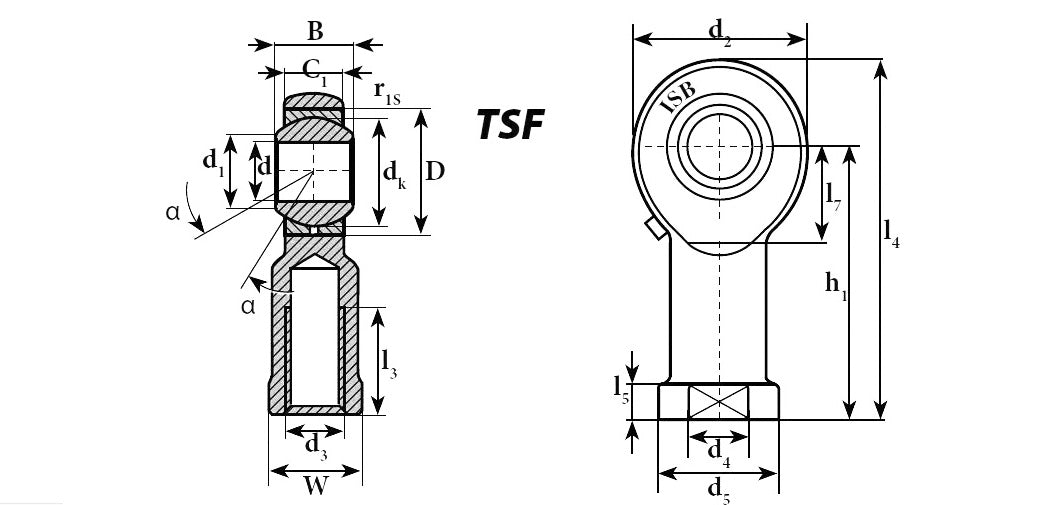

Technical
Technical
| d | 16mm |
|---|---|
| d1 | 19.4mm |
| d2 | 40mm |
| d3 | M 16x2mm |
| d4 | 22mm |
| d5 | 27mm |
| dk | 28.58mm |
| B | 21mm |
| C1 | 15mm |
| D | 32mm |
| h1 | 64mm |
| I3 | 33mm |
| I4 | 83mm |
| I5 | 8mm |
| I7 | 23mm |
| W | 22mm |
| α | 15° |
| r 1s min | 0.3Nmax Min -1 |
| Dynamic C | 21KN |
| Static C0 | 28KN |
| Weight | 0.22Kg |
