SKU: TS-N5/8-SE27-DUN

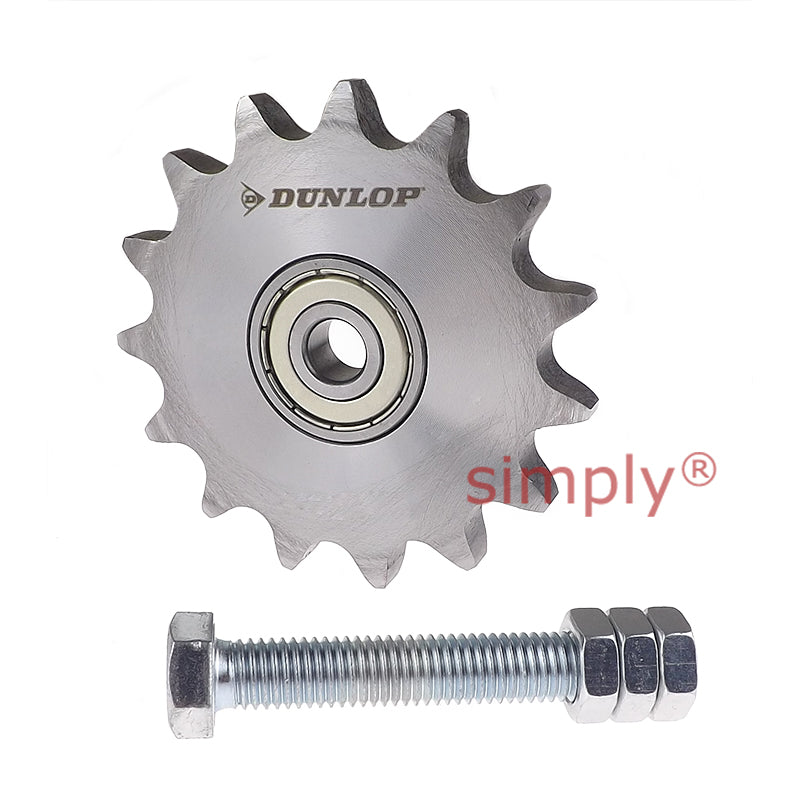

Dunlop 10BX15T N5/8 inch Sprocket for SE27 Tension Arm - Allow 2-3 Days
Dunlop 10BX15T N5/8 inch Sprocket for SE27 Tension Arm - Allow 2-3 Days
Regular price
$26.15
ex VAT
Regular price
Sale price
$26.15
ex VAT
In stock
Price Break
3+
$12.42
5+
$11.72
9+
$11.58
19+
$11.44
49+
$11.30
74+
$11.16
99+
$10.46
199+
$10.32
249+
$10.18
499+
$10.04
999+
$9.77
Quantity
Couldn't load pickup availability
Description
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M12
- Number of Teeth:
- 15
- Part No:
- N5/8 inch
Technical
Technical
| Part No. | N5/8 inch |
|---|---|
| No of Teeth | 15 |
| W | M12mm |
| L | 80mm |
| A | 12mm |
| B | 9.1mm |
| C | 12mm |
| D | 76.36mm |
| Torque Hex Nut 0.5d | 35 Nm |
| Adjusting Range Track R | 27-65mm |
| Size SE | 27 |
| To Fit Roller Chain ANSI | 50 |
| To Fit Roller Chain DIN 8187 | ISO 10 B |
