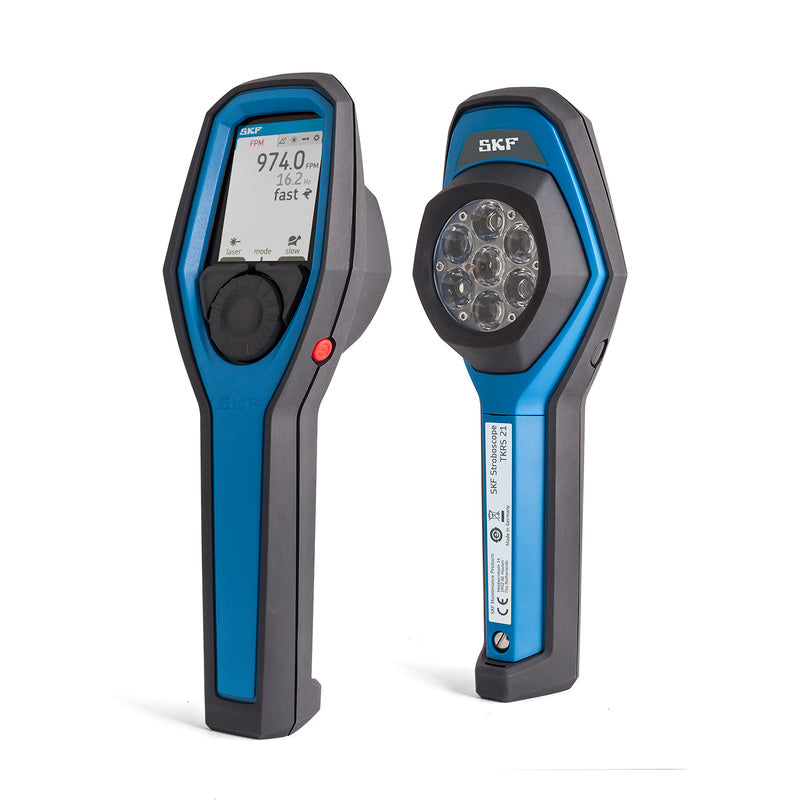

• SKF TKRS21 Stroboscope 30-300000 flashes per minute
1 1

SKU: TKRS21-SKF

SKF TKRS21 Stroboscope 30-300000 flashes per minute

SKF TKRS21 Stroboscope 30-300000 flashes per minute
$2,180.91 ex VAT
$2,180.91 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,034.19
19+ $976.09
29+ $964.47
39+ $952.85
49+ $941.23
74+ $929.61
99+ $871.51
199+ $859.89
249+ $848.27
499+ $836.65
999+ $813.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

SKF TKRS Series: The SKF Stroboscopes are portable, compact, easy-to-use stroboscopes that enable the motion of rotating or reciprocating machinery to appear frozen. They allow such applications as fan blades, couplings, gear wheels, machine tool spindles and belt drives to be inspected while running. TKRS stroboscopes are useful for ODR programmes and are an essential instrument for maintenance technicians. Phase shift mode enables the viewing of the object of interest to be rotated to the correct position for viewing, especially useful for gear wheels and fan blade inspection. For ease of use for extended periods, they are equipped with a tripod mounting thread.
Note:Ergonomic controls enable the flash rate to be set in a matter of seconds. Supplied in a sturdy carrying case with universal charger

Brand / Quality:
SKF - High Quality
Technical
Flash rate range 30 to 300000 flashes per minute (f/min)
Flash rate accuracy +0,005%(+1 digit at 23 deg C (73 F))
Flash setting and display resolution +0,1 (30 to 999,9 f/min) +1,0 (1000 to 300000 f/min)
Tachometer range 30 to 300000 r/min
Tachometer accuracy +0,02 % or +1 digit whichever is greater
Tachometer distance up to 2m at +/- 45 deg angle
Flash source 7 LEDs
Brightness (Flash duration) adjustable: 0,2 deg/ 1 u&
39s whichever is bigger -5 deg/ 2 000 u& 39s whichever is smaller
Light power >56 00 lux at 3 deg flash duration and 0,3 m (12 in) distance
Flash colour approx. 5000 - 8000 K
Power Source 3 x AA batteries (included)
Run time ca. per change ca. 3:00 h at 1 deg (100% display brightness) ca. 6:45 h at 0,2 deg (20% display brightness)
Display Multi-line backlight TFT
Display update Continuous
Controls Direct selector switches and rotary/push knob
Signal modification Edge selection, Divider, Delay
Housing Material ABS (plastics)
Instrument dimensions 225 x 78 x 50mm (8.9 x 3 x 2 inch)
Case dimensions 260 x 85 x 180mm (10.2 x 3.3 x 7.1 inch)
Instrument weight (incl. batteries) 0,29 kg (0,64 lb)
Total weight 0,78 kg (1,7 lb)
Operating temperature 0 to 40 deg C (32 to 104 F)
Storage temperature -20 to+45 deg C (-4 to +113 F)
Type of protection for indication only IP30
