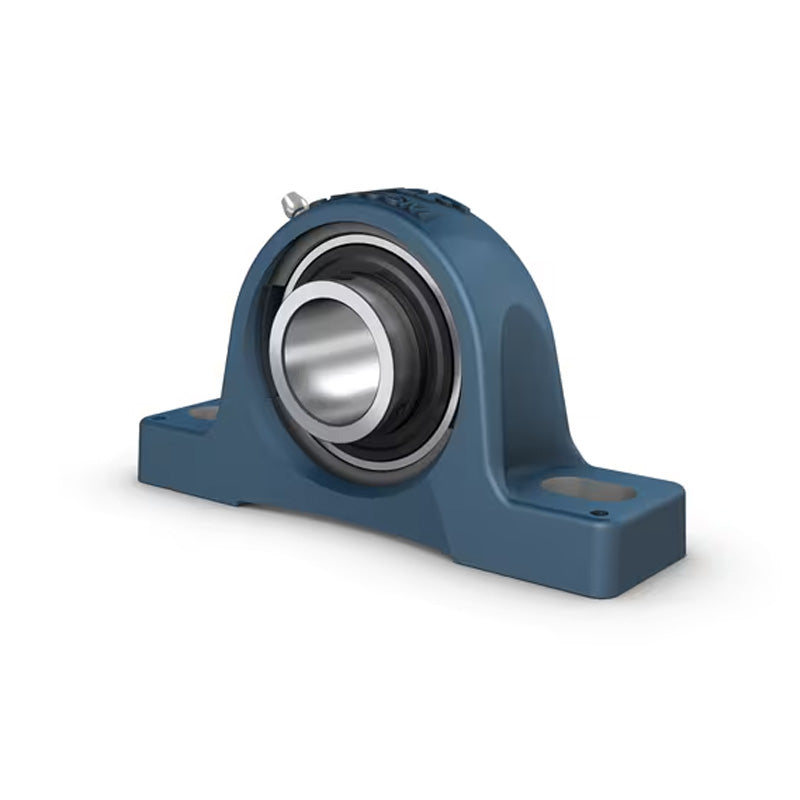

SKF SYL40TR/VE495 Plummer Block with Food-Grade Grease Grub Screw 40mm Insert
SKF SYL40TR/VE495 Plummer Block with Food-Grade Grease Grub Screw 40mm Insert
Out of stock
Description
Description
|
SKF Y-bearing Plummer Block Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- SYL
- Bolt Hole Centres:
- 137mm

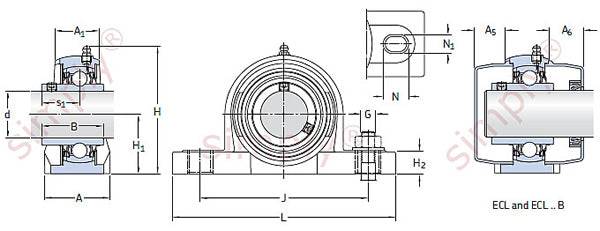

Technical
Technical
| d | 40mm |
|---|---|
| A | 54mm |
| A1 | 36.3mm |
| B | 49.2mm |
| H | 98mm |
| H1 | 49.2mm |
| H2 | 19.5mm |
| J | 137mm |
| L | 184mm |
| N | 18mm |
| N1 | 14mm |
| G | 12mm |
| s1 | 30.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 2800 rpm |
| A5 | 30.5mm |
| A6 | 33.5mm |
| Weight | 0.92 kg |
| Housing | SYL508 |
| Insert | YAR208-2RF/VE495 |
| Compatible end cover closed | ECL208 |
| Compatible end cover open | ECL208B |
