SKU: SYL1.1/4TH-SKF

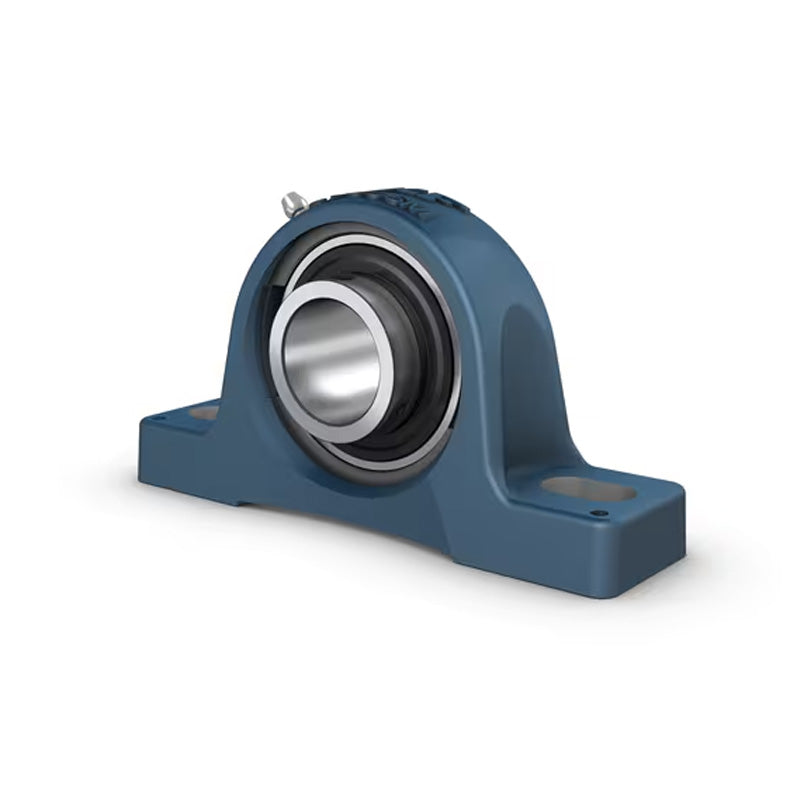

SKF SYL1-1/4TH Composite Plummer Block with Food Grease Grub Screw Insert 1-1/4 inch
SKF SYL1-1/4TH Composite Plummer Block with Food Grease Grub Screw Insert 1-1/4 inch
Out of stock
Description
Description
|
SKF Y-bearing Plummer Block Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SYL
- Bolt Hole Centres:
- 227mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A | 48mm |
| A1 | 32.3mm |
| B | 42.9mm |
| H | 94mm |
| H1 | 47.6mm |
| H2 | 28mm |
| J | 227mm |
| L | 267mm |
| N | 28mm |
| N1 | 24mm |
| G | 22mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 22.6 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 3200 rpm |
| A5 | 29mm |
| A6 | 29mm |
| Weight | 0.76 kg |
| Housing | SYL507 |
| Insert | YAR207-104-2RF/HV |
| Compatible end cover closed | ECL207 |
| Compatible end cover open | ECL207-104B |
