SKU: SY1.3/16PF/AH-SKF

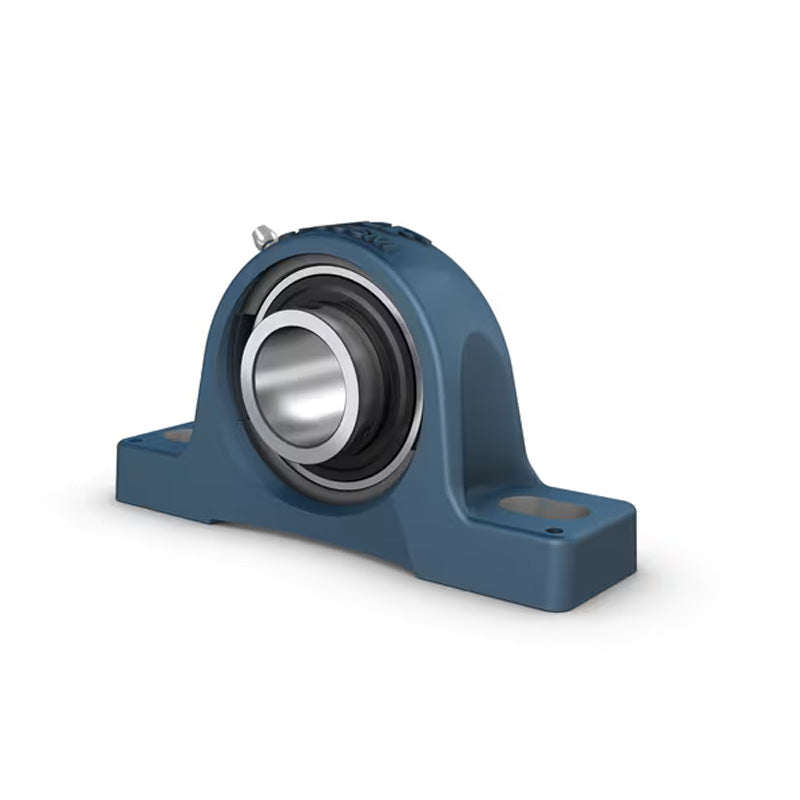

SKF SY1-3/16PF/AH Concentra Pillow Block Housing with 1-3/16 inch Insert
SKF SY1-3/16PF/AH Concentra Pillow Block Housing with 1-3/16 inch Insert
Out of stock
Description
Description
|
SKF ConCentra Ball Bearing Units: This bearing unit consists of a deep groove ball bearing with the inner ring extended on both sides, an SKF ConCentra stepped sleeve and an SY 500 M series plummer block housing for metric shafts, or an SY 500 U/AH series pillow block housing for inch shafts. Filled with a high-quality, long-lasting grease, maintenance-free operation is provided in most cases. The unit can accommodate up to 2 degrees of initial misalignment if they are relubricated during operation otherwise misalignment of up to 5 degrees can be tolerated. The SKF ConCentra ball bearing units have a unique 360 degree locking mechanism. The near perfect 360 degree grip on the shaft virtually eliminates shaft damage and the possibility of fretting corrosion. Benefits: Tolerates misalignment, filled with high-quality grease |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- SY
- Bolt Hole Centres:
- 117.5mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| A | 40mm |
| B | 44.5mm |
| H | 82mm |
| H1 | 42.9mm |
| H2 | 16.5mm |
| J | 117.5mm |
| L | 152mm |
| N | 23.5mm |
| N1 | 14mm |
| G | 12mm |
| s1 | 30.5mm |
| Static Load Cr | 11.2 kN |
| Dynamic Load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.3 kg |
