SKU: SW220-M2400

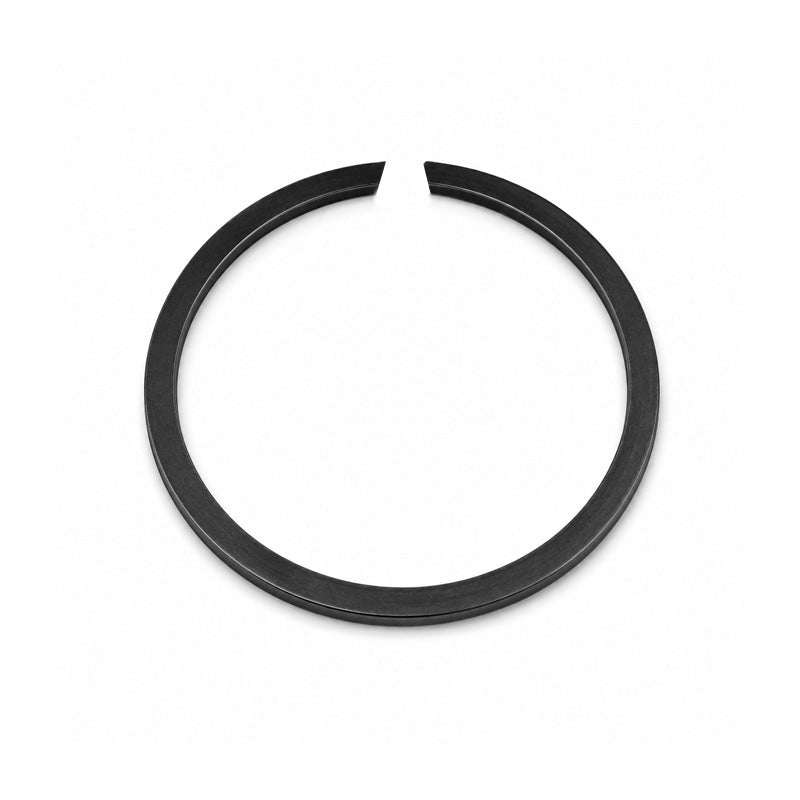

SW220 Snap Ring to Suit 220mm Shaft
SW220 Snap Ring to Suit 220mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS220 CFS-220 2400-220 SW220 SW-220 M2400-220
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 214.8mm
- Shaft Size:
- 220mm
Technical
Technical
| d1 | 220mm |
|---|---|
| s | 3mm (Tolerance -0.1) |
| b | 5mm (Tolerance -0.1) |
| d3 max. | 214.8mm |
| d2 | 217mm (Tolerance - 0.29) |
| m min. | 3.2mm |
| FN | 171 kN |
| FR | 55.5 kN |
| n det x1000 | 0.4 rpm |
