SKU: SW190-M2400

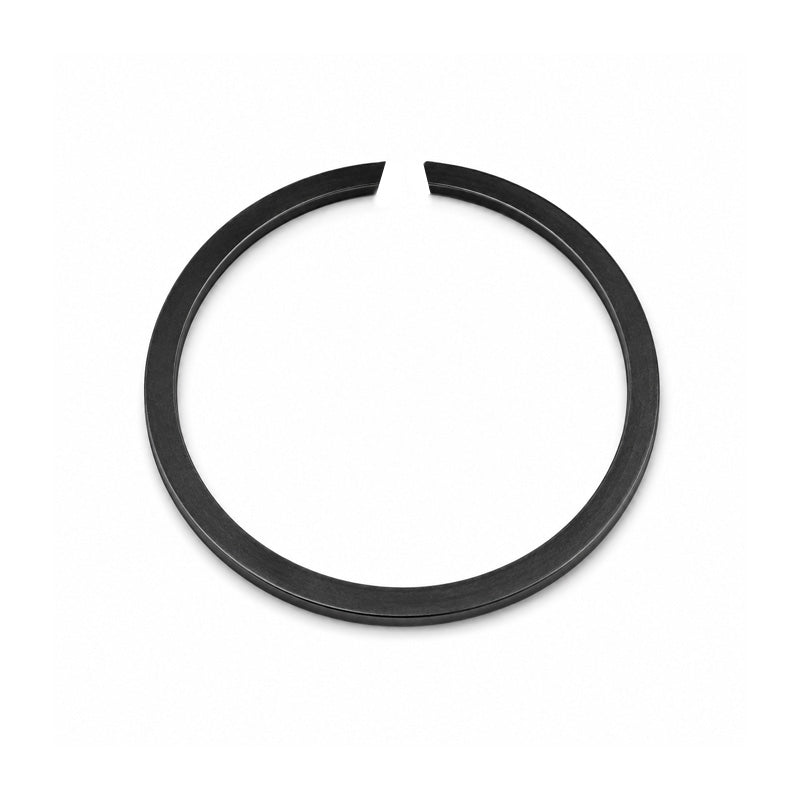

SW190 Snap Ring to Suit 190mm Shaft
SW190 Snap Ring to Suit 190mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS190 CFS-190 2400-190 SW190 SW-190 M2400-190
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 185.1mm
- Shaft Size:
- 190mm
Technical
Technical
| d1 | 190mm |
|---|---|
| s | 3mm (Tolerance -0.1) |
| b | 5mm (Tolerance -0.1) |
| d3 max. | 185.1mm |
| d2 | 187mm (Tolerance - 0.29) |
| m min. | 3.2mm |
| FN | 148 kN |
| FR | 64 kN |
| n det x1000 | 1 rpm |
