SKU: SUCF.PL.218-56

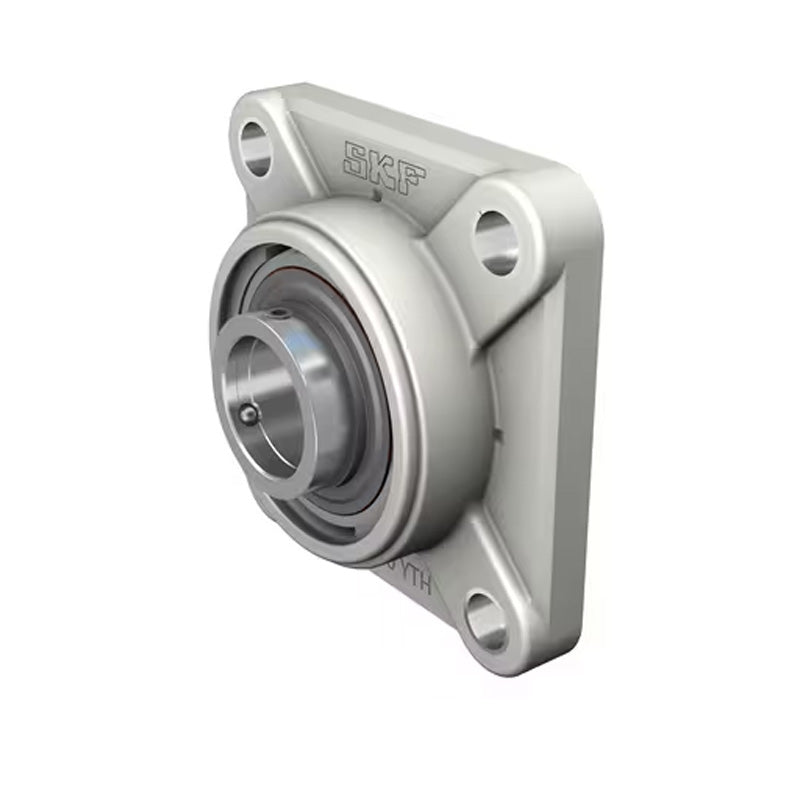

SUCFPL218-56 Imperial Four Bolt Square Thermo Plastic Flange Housing with 3-1/2 inch Bore Stainless Insert
SUCFPL218-56 Imperial Four Bolt Square Thermo Plastic Flange Housing with 3-1/2 inch Bore Stainless Insert
Out of stock
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 187mm
Technical
Technical
| d | 3-1/2 inch |
|---|---|
| a | 235mm |
| e | 187mm |
| i | 42mm |
| g | 26mm |
| L | 70mm |
| S | 23mm |
| Z | 98.3mm |
| Bi | 96mm |
| n | 39.7mm |
| Bolt | 20mm |
| Weight | 11.3 kg |
| Dynamic load | 7500 kgf |
| Static load | 6170 kgf |
| Temperature Range | -35 to 102 deg C |
