SKU: STUD-C8M5SS-CHI

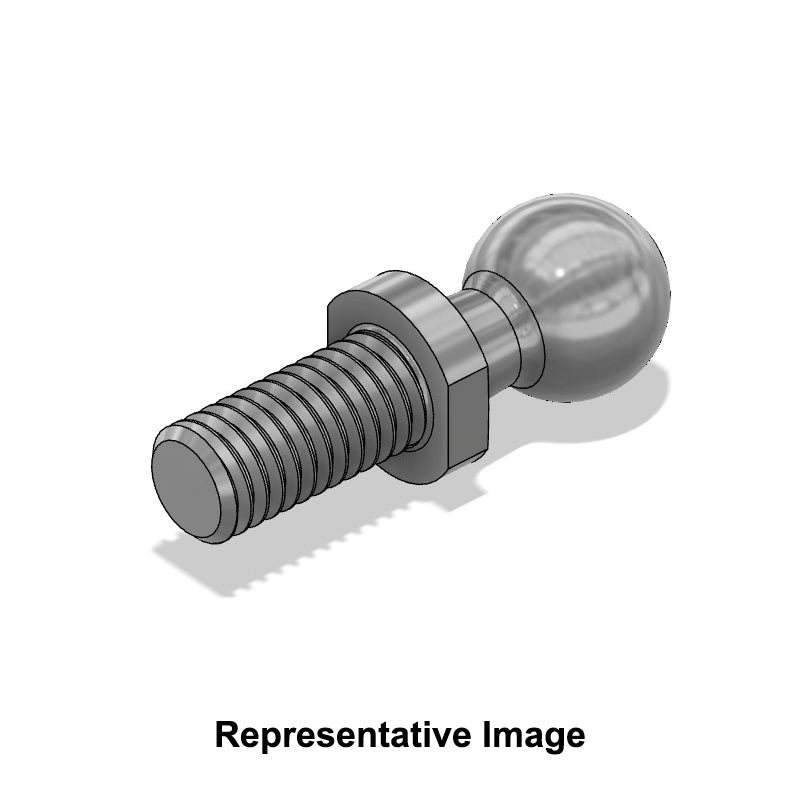

Chiavette C8SS Stainless Steel Ball Stud 8mm Ball Diameter M5 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Chiavette Stainless Steel Ball Studs: Ball studs are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball studs are intended to be used alongside a compatible ball socket that when combined will produce a ball joint. This threaded stud seamlessly integrates into diverse mechanical systems. Its threaded design simplifies installation, facilitating efficient assembly for peak performance. Crafted from high-quality stainless steel, these ball studs are inherently resistant to corrosion, rust, and chemical damage, making them ideal for use in marine environments, chemical processing plants, and other corrosive settings.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M5
- Outside Diameter:
- 8mm
- Length:
- 10.2mm
- Type:
- Threaded
Technical
| --- | Dimensions |
|---|---|
| d1 | 8mm |
| c | 2mm (+/-0.4) |
| d2 | M5 |
| d3 | 8mm |
| d4 | 4mm (+/-0.2) |
| d5 | 5mm |
| l2 | 10.2mm (+/-0.3) |
| l3 | 9mm (+/-0.3) |
| l4 | 12.5mm (+/-0.3) |
| l5 | 1.2mm (+/-0.3) |
| l6 | 4mm |
| sw | 7mm |
| Weight | 0.005 kg |
