SKU: STUD-C10M6SS-CHI

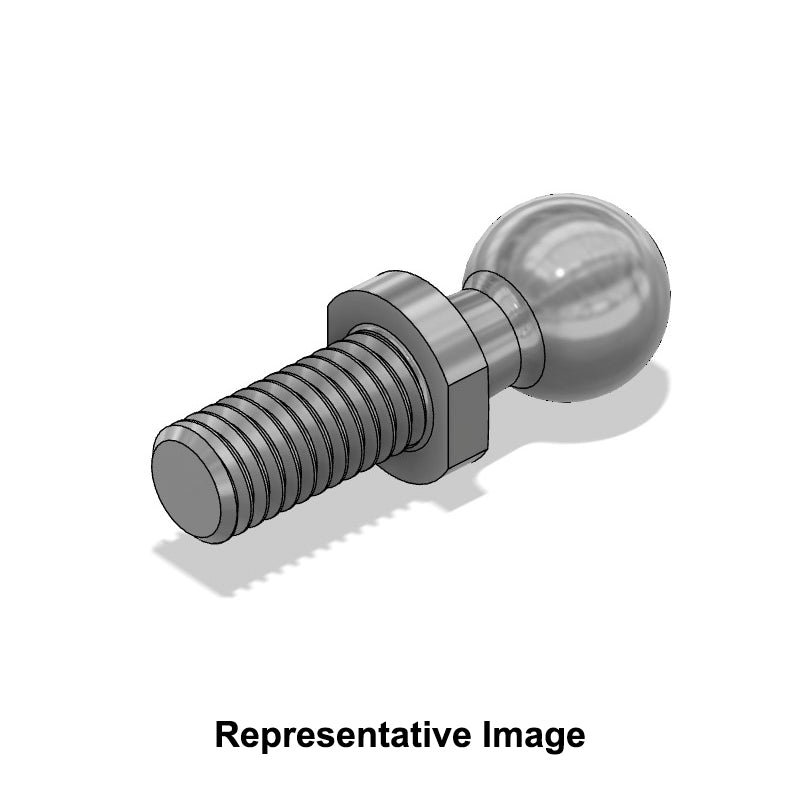

Chiavette C10SS Stainless Steel Ball Stud 10mm Ball Diameter M6 Thread - Allow 2-3 Days
Out of stock
Share this product
Description
Chiavette Stainless Steel Ball Studs: Ball studs are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball studs are intended to be used alongside a compatible ball socket that when combined will produce a ball joint. This threaded stud seamlessly integrates into diverse mechanical systems. Its threaded design simplifies installation, facilitating efficient assembly for peak performance. Crafted from high-quality stainless steel, these ball studs are inherently resistant to corrosion, rust, and chemical damage, making them ideal for use in marine environments, chemical processing plants, and other corrosive settings.
- Brand / Quality:
- Chiavette - High Quality
- Thread Size:
- M6
- Outside Diameter:
- 10mm
- Length:
- 12.5mm
- Type:
- Threaded
Technical
| --- | Dimensions |
|---|---|
| d1 | 10mm |
| c | 2.2mm (+/-0.4) |
| d2 | M6 |
| d3 | 10mm |
| d4 | 5mm (+/-0.2) |
| d5 | 6mm |
| l2 | 12.5mm (+/-0.3) |
| l3 | 11mm (+/-0.3) |
| l4 | 15.5mm (+/-0.3) |
| l5 | 1.2mm (+/-0.3) |
| l6 | 4mm |
| sw | 8mm |
| Weight | 0.009 kg |
