SKU: ST50EC-RHP

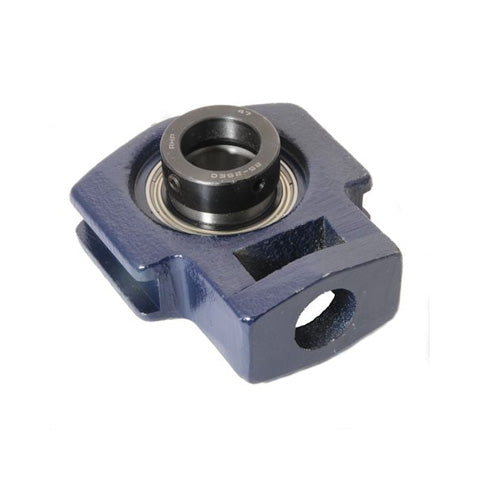

RHP ST50EC Cast Iron Take Up Unit and 50mm Bore Insert

Name: RHP ST50EC Cast Iron Take Up Unit and 50mm Bore Insert
Brand: RHP
SKU: ST50EC-RHP
Price: 182.05 CAD
Availability: InStock

$182.05 ex VAT

Sale Sold out

In stock

Price Break

10+ $86.44

20+ $81.58

30+ $80.61

40+ $79.64

50+ $78.67

75+ $77.70

100+ $72.84

200+ $71.87

250+ $70.90

500+ $69.93

1000+ $67.99

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	50mm
L	151mm
L1	90.5mm
L2	15.5mm
L3	20.5mm
L4	81.5mm
L5	50.5mm
H	118mm
H1	82.5mm
H2	49.5mm
H3	101mm
N	29mm
A	49.5mm
A1	37mm
A2	17.5mm
B2	43.64mm
s1	11.05mm
d2	69.85mm
Dynamic load	35000 N
Static load	23200 N
Rec max speed	3400 rpm
Weight	2.8 kg
Insert	<a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a>
Casting group	8
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
