SKU: ST50A-RHP

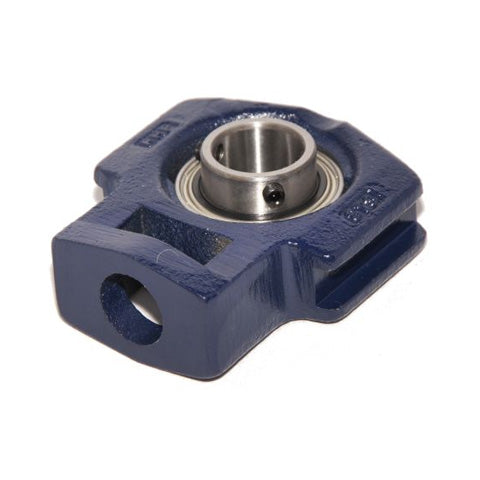

RHP ST50A Cast Iron Take Up Unit and 50mm Bore Insert

RHP ST50A Cast Iron Take Up Unit and 50mm Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 50mm
L 151mm
L1 90.5mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B1 43.54mm
s1 11.05mm
d1 62.2mm
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1250-50G+insonly">1250-50G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
