SKU: ST50-RHP

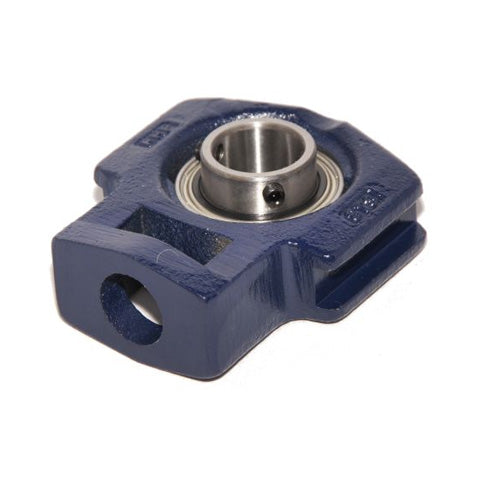

RHP ST50 Cast Iron Take Up Unit and 50mm Bore Insert

Name: RHP ST50 Cast Iron Take Up Unit and 50mm Bore Insert
Brand: RHP
SKU: ST50-RHP
Price: 167.16 CAD
Availability: InStock

$167.16 ex VAT

Sale Sold out

In stock

Price Break

10+ $79.37

20+ $74.91

30+ $74.02

40+ $73.13

50+ $72.24

75+ $71.35

100+ $66.89

200+ $66.00

250+ $65.10

500+ $64.21

1000+ $62.43

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	50mm
L	151mm
L1	90.5mm
L2	15.5mm
L3	20.5mm
L4	81.5mm
L5	50.5mm
H	118mm
H1	82.5mm
H2	49.5mm
H3	101mm
N	29mm
A	49.5mm
A1	37mm
A2	17.5mm
B	51.59mm
s	19.1mm
d1	62.2mm
Dynamic load	35000 N
Static load	23200 N
Rec max speed	3400 rpm
Weight	2.8 kg
Insert	<a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a>
Casting group	8
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
