SKU: ST40EC-RHP

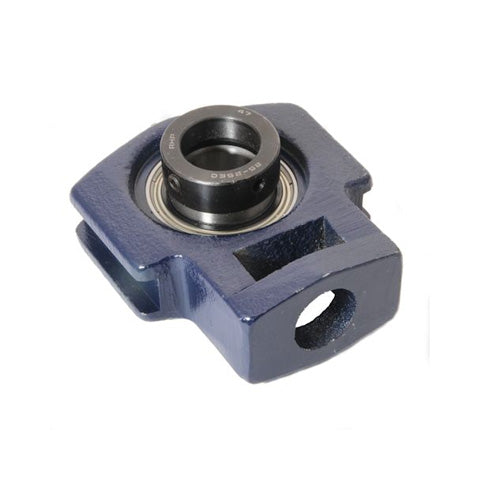

RHP ST40EC Cast Iron Take Up Unit and 40mm Bore Insert

Name: RHP ST40EC Cast Iron Take Up Unit and 40mm Bore Insert
Brand: RHP
SKU: ST40EC-RHP
Price: 144.73 CAD
Availability: InStock

$144.73 ex VAT

Sale Sold out

In stock

Price Break

10+ $68.72

20+ $64.86

30+ $64.09

40+ $63.31

50+ $62.54

75+ $61.77

100+ $57.91

200+ $57.14

250+ $56.37

500+ $55.59

1000+ $54.05

Return policy

90-Days Free Returns

Low cost shipping

International Delivery

Description

Technical

Bore	40mm
L	143.5mm
L1	89.2mm
L2	15.5mm
L3	20.5mm
L4	81.5mm
L5	50.5mm
H	118mm
H1	82.5mm
H2	49.5mm
H3	101mm
N	29mm
A	49.5mm
A1	37mm
A2	17.5mm
B2	43.64mm
s1	11.05mm
d2	60.3mm
Dynamic load	32500 N
Static load	19900 N
Rec max speed	4000 rpm
Weight	2.7 kg
Insert	<a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a>
Casting group	6
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
