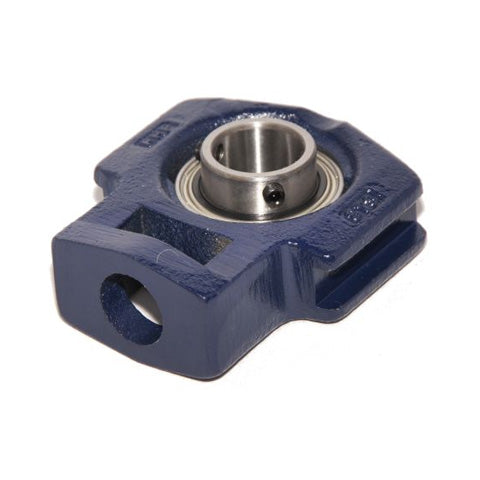

RHP ST2-7/8 Cast Iron Take Up Unit and 2-7/8 inch Bore Insert
RHP ST2-7/8 Cast Iron Take Up Unit and 2-7/8 inch Bore Insert
Regular price
$510.65
ex VAT
Regular price
Sale price
$510.65
ex VAT
In stock
Price Break
10+
$242.16
20+
$228.55
30+
$225.83
40+
$223.11
50+
$220.39
75+
$217.67
100+
$204.06
200+
$201.34
250+
$198.62
500+
$195.90
1000+
$190.46
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 73.03mm = 2.875 (2-7/8) inch
- Style:
- ST

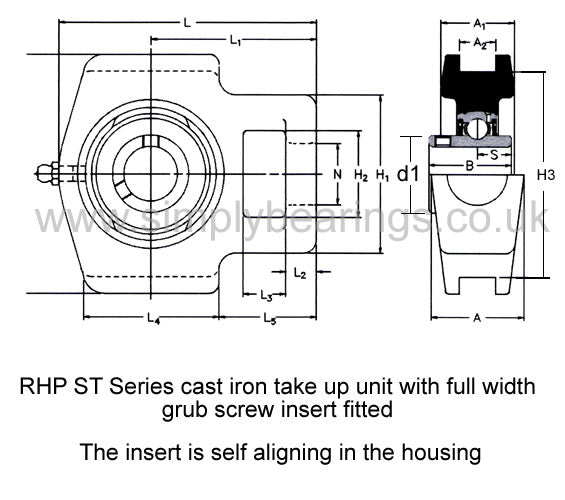

Technical
Technical
| Bore | 2-7/8 inch |
|---|---|
| L | 8.76 inch |
| L1 | 5.413 inch |
| L2 | 0.846 inch |
| L3 | 1.26 inch |
| L4 | 4.744 inch |
| L5 | 3.031 inch |
| H | 6.555 inch |
| H1 | 4.449 inch |
| H2 | 2.756 inch |
| H3 | 5.937 inch |
| N | 1.654 inch |
| A | 2.756 inch |
| A1 | 1.988 inch |
| A2 | 1.063 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-7/8G+insonly">1075-2-7/8G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
