SKU: ST2.15/16DEC-RHP

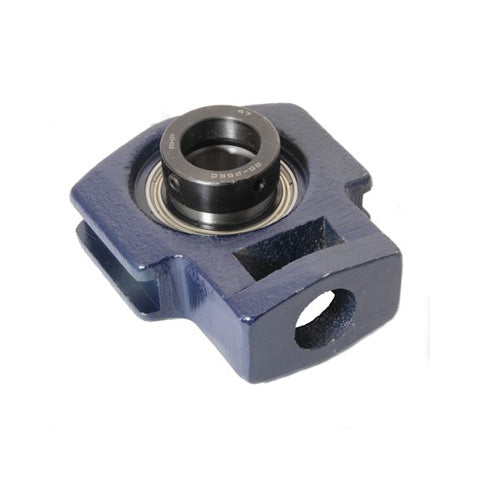

RHP ST2-15/16DEC Cast Iron Take Up Unit and 2-15/16 inch Bore Insert
RHP ST2-15/16DEC Cast Iron Take Up Unit and 2-15/16 inch Bore Insert
Regular price
$676.96
ex VAT
Regular price
Sale price
$676.96
ex VAT
In stock
Price Break
10+
$321.42
20+
$303.37
30+
$299.75
40+
$296.14
50+
$292.53
75+
$288.92
100+
$270.86
200+
$267.25
250+
$263.64
500+
$260.03
1000+
$252.80
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- ST
Technical
Technical
| Bore | 2-15/16 inch |
|---|---|
| L | 8.76 inch |
| L1 | 5.413 inch |
| L2 | 0.846 inch |
| L3 | 1.26 inch |
| L4 | 4.744 inch |
| L5 | 3.031 inch |
| H | 6.555 inch |
| H1 | 4.449 inch |
| H2 | 2.756 inch |
| H3 | 5.937 inch |
| N | 1.654 inch |
| A | 2.756 inch |
| A1 | 1.988 inch |
| A2 | 1.063 inch |
| B3 | 3.611 inch |
| s2 | 1.471 inch |
| d2 | 4 inch |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-15/16DECG+insonly">1075-2-15/16DECG Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
