SKU: ST1DEC-RHP

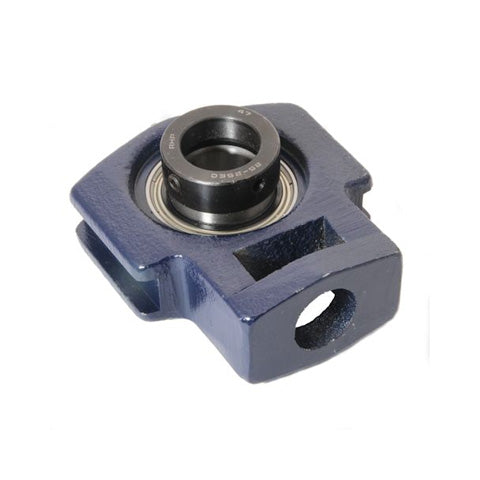

RHP ST1DEC Cast Iron Take Up Unit and 1 inch Bore Insert
RHP ST1DEC Cast Iron Take Up Unit and 1 inch Bore Insert
Regular price
$101.16
ex VAT
Regular price
Sale price
$101.16
ex VAT
In stock
Price Break
10+
$48.03
20+
$45.34
30+
$44.80
40+
$44.26
50+
$43.72
75+
$43.18
100+
$40.48
200+
$39.94
250+
$39.40
500+
$38.86
1000+
$37.78
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- ST
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.858 inch |
| L1 | 2.441 inch |
| L2 | 0.453 inch |
| L3 | 0.63 inch |
| L4 | 1.988 inch |
| L5 | 1.437 inch |
| H | 3.484 inch |
| H1 | 2.303 inch |
| H2 | 1.26 inch |
| H3 | 2.992 inch |
| N | 0.886 inch |
| A | 1.417 inch |
| A1 | 1.083 inch |
| A2 | 0.531 inch |
| B3 | 1.748 inch |
| s2 | 0.689 inch |
| d2 | 1.5 inch |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-1DECG+insonly">1025-1DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
