SKU: ST1.1/4DECR-RHP

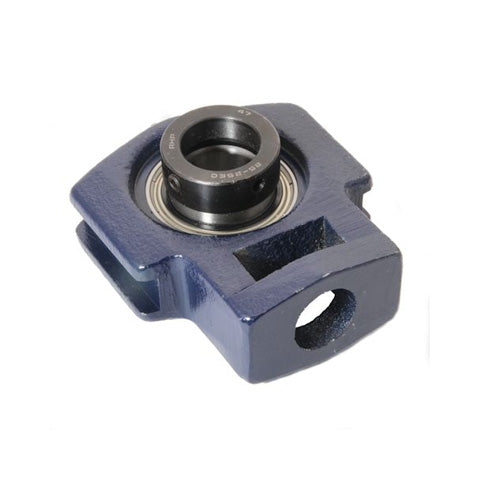

RHP ST1-1/4DECR Cast Iron Take Up Unit and 1-1/4 inch Bore Insert

RHP ST1-1/4DECR Cast Iron Take Up Unit and 1-1/4 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/4 inch
L 4.547 inch
L1 2.823 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B3 1.906 inch
s2 0.721 inch
d2 1.75 inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/4DECG+insonly">1030-1-1/4DECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
