SKU: SSUCFL.217-52

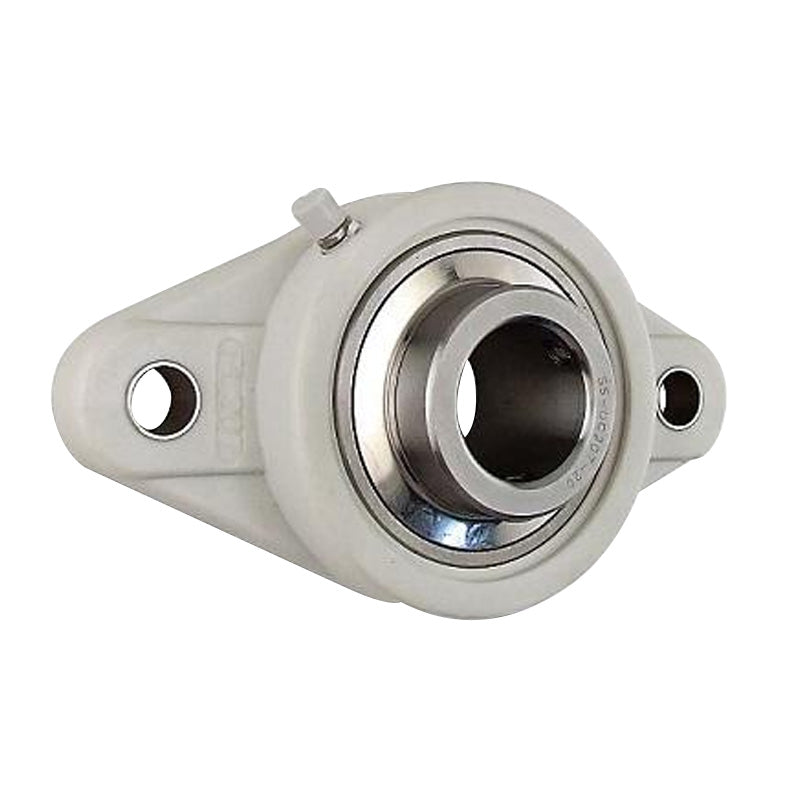

SSUCFL217-52 Imperial Two Bolt Oval Stainless Steel Flange Housing with 3-1/4 inch Bore Stainless Insert
SSUCFL217-52 Imperial Two Bolt Oval Stainless Steel Flange Housing with 3-1/4 inch Bore Stainless Insert
Out of stock
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- SSUCFL
- Bolt Hole Centres:
- 248mm
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| a | 305mm |
| e | 248mm |
| i | 36mm |
| g | 22mm |
| L | 63mm |
| S | 25mm |
| b | 190mm |
| Z | 87.6mm |
| Bi | 85.7mm |
| n | 34.1mm |
| Bolt | 22mm |
| Weight | 9.6 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
