SKU: SSUCFL.213

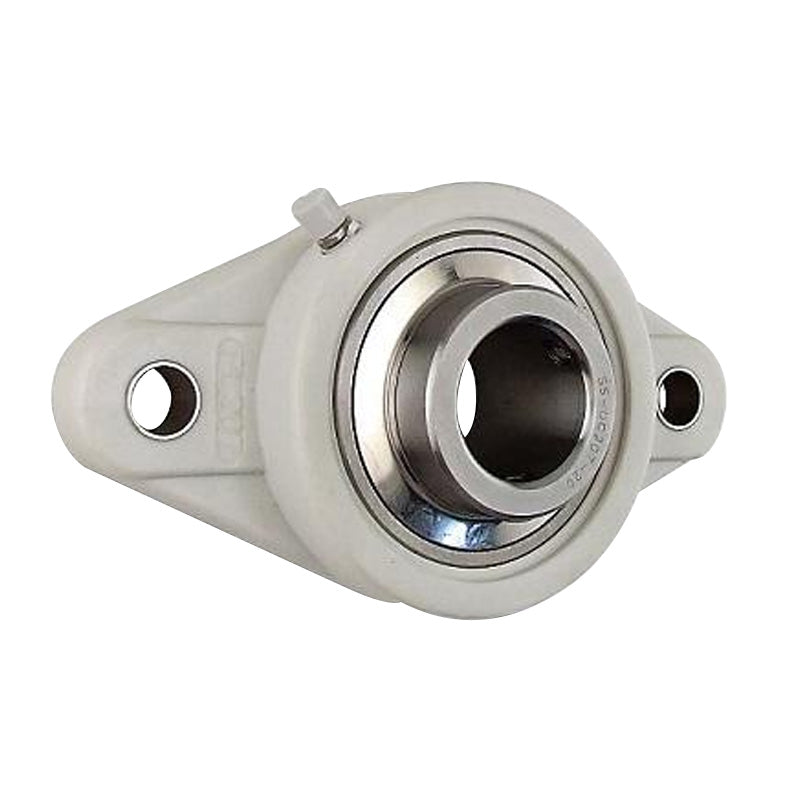

SSUCFL213 Metric Two Bolt Oval Stainless Steel Flange Housing with 65mm Bore Stainless Insert
SSUCFL213 Metric Two Bolt Oval Stainless Steel Flange Housing with 65mm Bore Stainless Insert
Out of stock
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- SSUCFL
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 258mm |
| e | 210mm |
| i | 30mm |
| g | 20mm |
| L | 501mm |
| S | 23mm |
| b | 155mm |
| Z | 69.7mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Bolt | 20mm |
| Weight | 5.1 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
