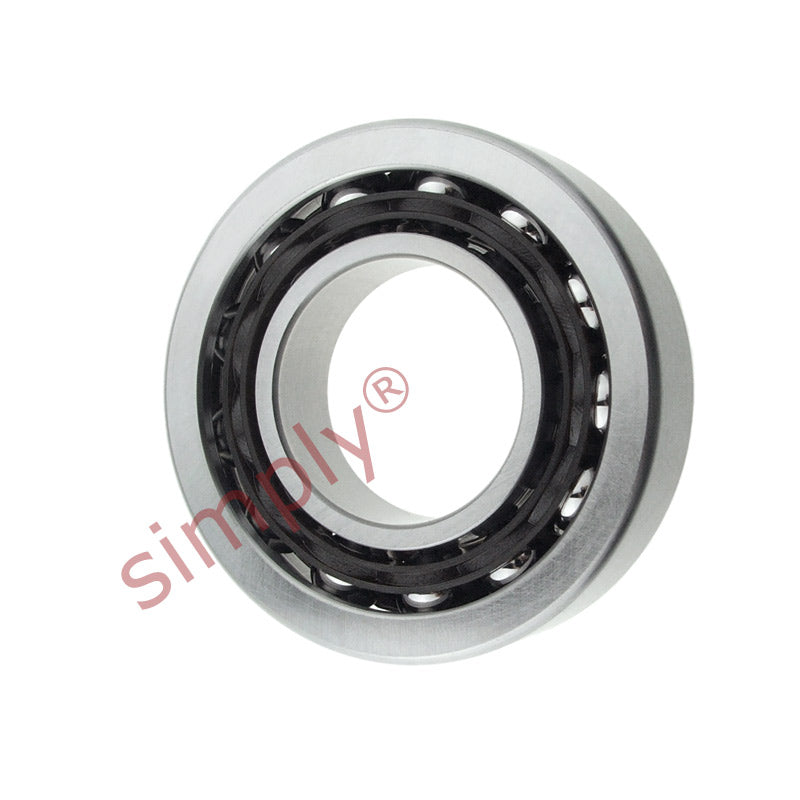

Budget SS7321 Stainless Steel Single Row Angular Contact Open Ball Bearing 105x225x49mm

Rubber Sealed Stainless Steel Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity. Fitted with rubber seals these bearings require little or no maintenance as the pre filled lubricant is retained by the seals,
Stainless steel construction offers resilience to corrosion
Benefits: Compact, rigid, accommodates tilting, radial and axial loads, corrosion resistant
Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.
Note 2: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note 3: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

105mm

Outside Diameter:

225mm

Width:

49mm

Seals / Shields:

None

Clearance:

* Standard
