SKU: SS.SB208-24

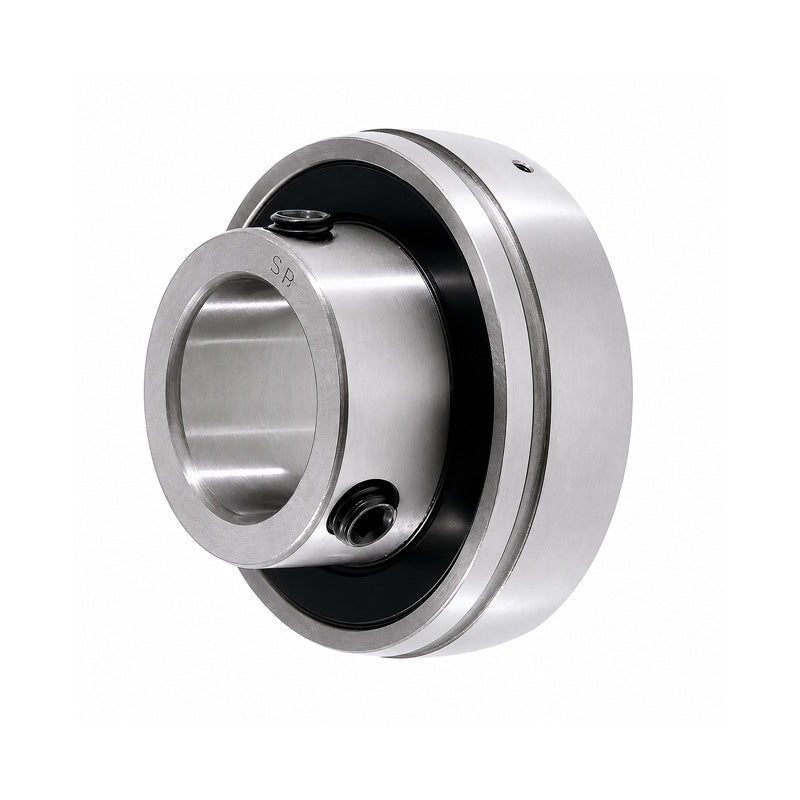

SSSB208-24 Stainless Steel Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
SSSB208-24 Stainless Steel Imperial Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Out of stock
Share this product
Description
Description
SB Stainless Steel Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.
Benefits: Cost effective bearing insert, grub screw fixing, flat back design
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
Technical
Technical
| Shaft Dia | 1-1/2 inch |
|---|---|
| Be | 18mm |
| D | 80mm |
| Bi | 34mm |
| n | 9mm |
| m | 25mm |
| G | 7mm |
| h | 6mm |
| ds | 5/16-24 UNF |
| Dynamic Load | 2560 kgf |
| Static Load | 1810 kgf |
| Weight | 0.6kg |
