SKU: SS.D1300-098

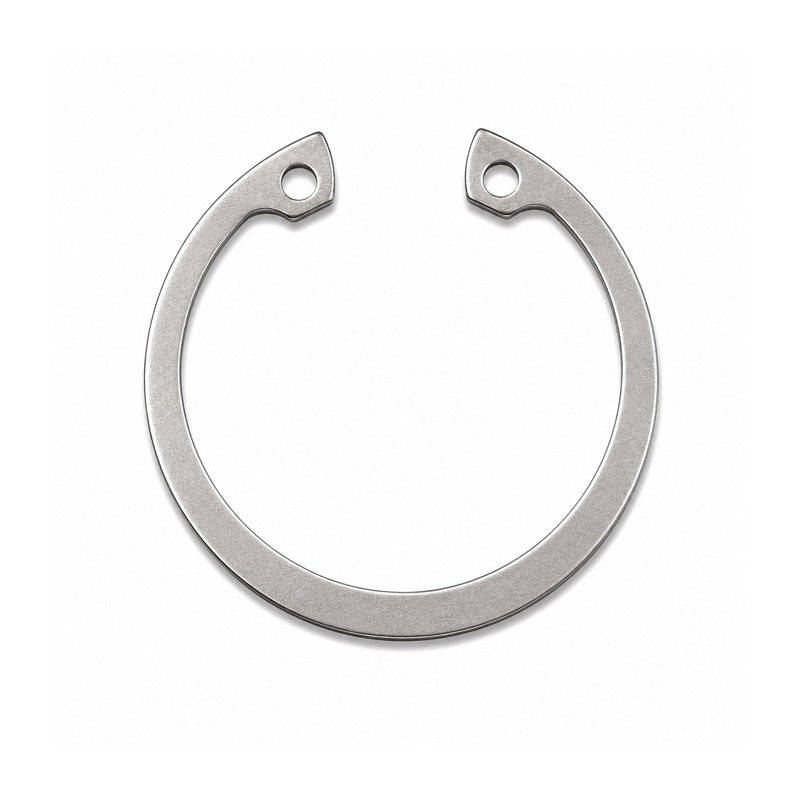

Stainless Internal Circlip for 98mm Bore Diameter Un-Sprung Dia 103.5mm
Stainless Internal Circlip for 98mm Bore Diameter Un-Sprung Dia 103.5mm
Equivalent to: SSD1300-098
Out of stock
Description
Description
|
Stainless Steel Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 98mm
- Outside Diameter:
- 103.5mm
- Material:
- Stainless Steel
- Thickness:
- 3mm
- Groove Diameter:
- 101.5mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size | 98mm |
| Thickness s | 3mm |
| Thickness tolerance | -0.08mm |
| Unstressed diameter d3 | 103.5mm |
| Unstressed diameter tolerance | +1.30-0.54mm |
| Lug a | 9mm |
| Beam b | 8.3mm |
| d5 | 3.5mm |
| Weight | 41.00 g |
| --- | Groove Requirements |
| Groove diameter | 101.5mm |
| Groove tolerance | 0.35mm |
| Minimum groove width | 3.15mm |
| Groove depth | 1.75mm |
