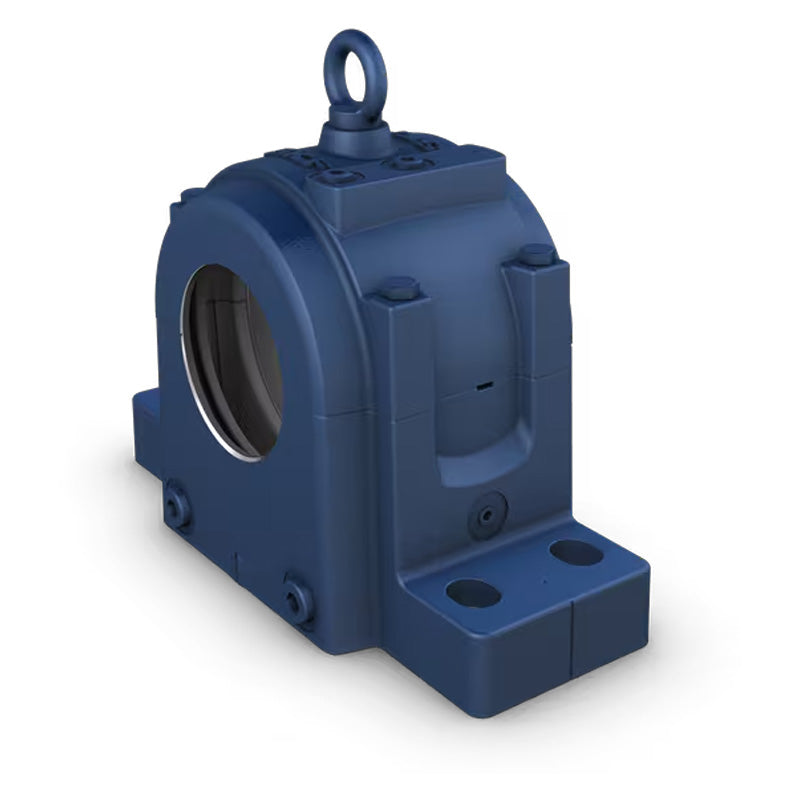

SKF SONL234-534 Cast Iron Split Pillow Block Housing
SKF SONL234-534 Cast Iron Split Pillow Block Housing
Out of stock
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 515mm
Technical
Technical
| da | 150mm |
|---|---|
| Ca | 114mm |
| Da | 310mm |
| A | 310mm |
| A1 | 230mm |
| A2 | 215mm |
| AA | 330mm |
| AB | 350mm |
| d1 | 195mm |
| B1 | 132mm |
| H | 440mm |
| H0 | 530mm |
| H1 | 235mm |
| H2 | 70mm |
| J | 515mm |
| J1 | 130mm |
| L | 610mm |
| N | 42mm |
| N1 | 35mm |
| S | 175mm |
| PG | G 3/4 |
| P1 | 85mm |
| P2 | 88mm |
| RG | G 1-1/2 |
| R1 | 268mm |
| R2 | 41mm |
| O1 | 136mm |
| O2 | 215mm |
| J6 | 530mm |
| N4 max | 20mm |
| ba | 77mm |
| bb | 252mm |
| s2 | 54mm |
| Weight | 190 kg |
