SKU: SLG282_IMP_NAK

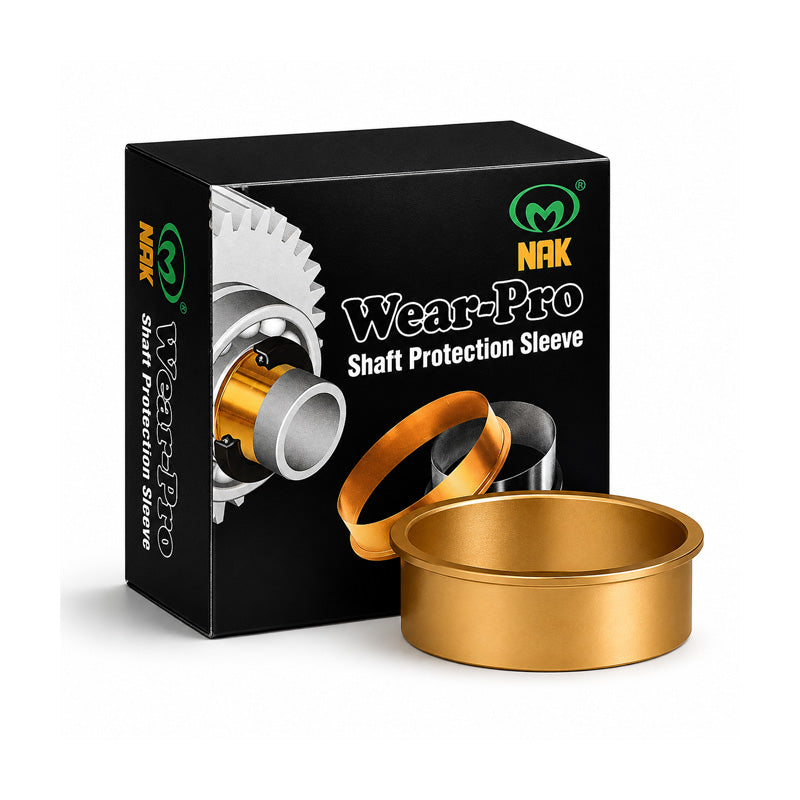

NAK SLG282 Hardened Stainless Sleeve for Shafts 1.453-1.460 inch - Allow 7-10 Days
NAK SLG282 Hardened Stainless Sleeve for Shafts 1.453-1.460 inch - Allow 7-10 Days
Out of stock
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.5 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.457 inch
- Flange Diameter:
- 1.781 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.453-1.460 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.457 inch |
| Flange Diameter (D) | 1.781 inch |
| Width on Shaft (X) | 0.375 inch |
| Overall Width (Y) | 0.5 inch |
| Installation Depth (Z) | 0.811 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
