SKU: SLG095_IMP_NAK
NAK SLG095 Hardened Stainless Sleeve for Shafts 2.124-2.130 inch - Allow 7-10 Days
NAK SLG095 Hardened Stainless Sleeve for Shafts 2.124-2.130 inch - Allow 7-10 Days
Out of stock
Description
Description

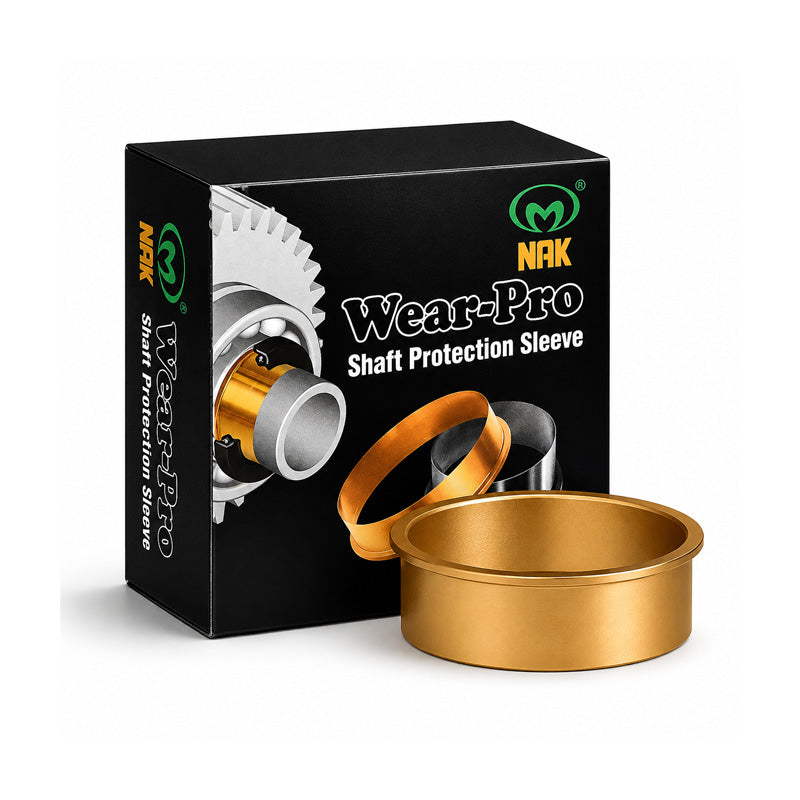

NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.937 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 2.125 inch
- Flange Diameter:
- 2.421 inch
Technical
Technical
| Shaft Diameter Range (A) | 2.124-2.130 inch |
|---|---|
| Nominal Shaft Diameter (A) | 2.125 inch |
| Flange Diameter (D) | 2.421 inch |
| Width on Shaft (X) | 0.78 inch |
| Overall Width (Y) | 0.937 inch |
| Installation Depth (Z) | 1.374 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
