SKU: SLC35DEC-RHP

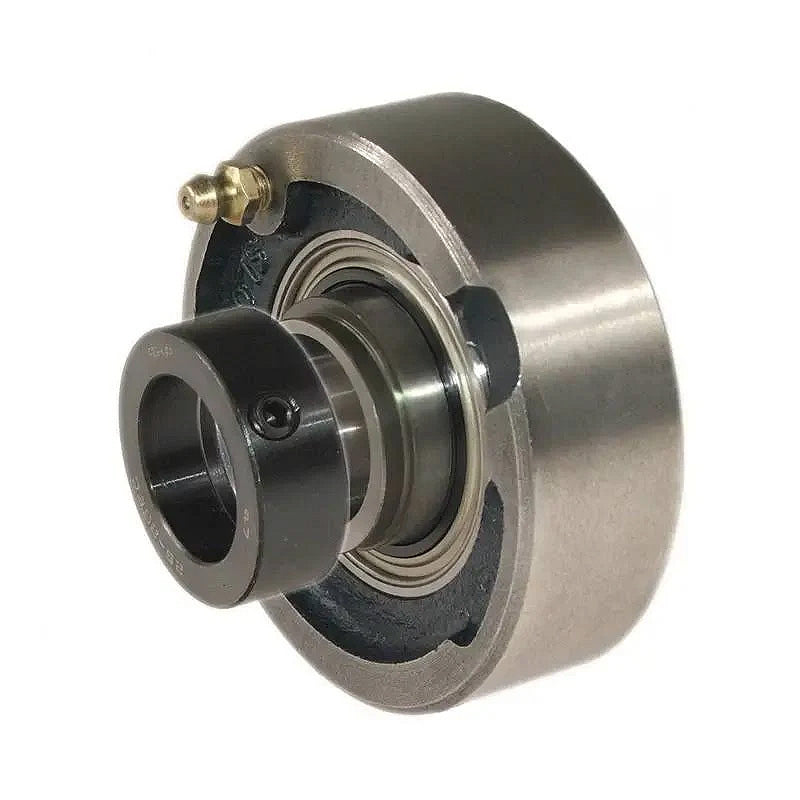

RHP SLC35DEC Cast Iron Cartridge Unit with 35mm Bore Insert 98.45mm Outside Diameter

RHP SLC35DEC Cast Iron Cartridge Unit with 35mm Bore Insert 98.45mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 35mm
L 98.45mm
A 30.96mm
A3 47.78mm
B3 51.18mm
s2 18.89mm
d2 55.58mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 1.4 kg
Insert <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
