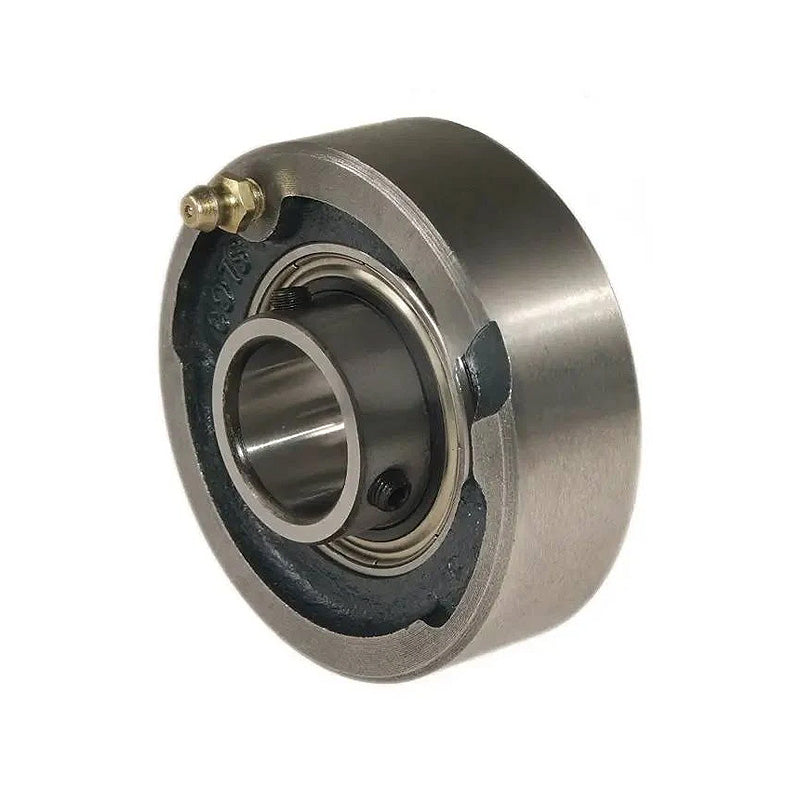

RHP SLC25A Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter
RHP SLC25A Cast Iron Cartridge Unit with 25mm Bore Insert 79.4mm Outside Diameter
Regular price
$71.49
ex VAT
Regular price
Sale price
$71.49
ex VAT
In stock
Price Break
10+
$33.90
20+
$31.99
30+
$31.61
40+
$31.23
50+
$30.85
75+
$30.47
100+
$28.56
200+
$28.18
250+
$27.80
500+
$27.42
1000+
$26.66
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 79.4mm
- Style:
- SLC

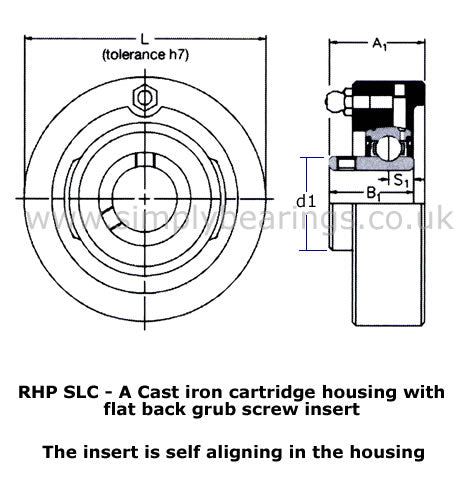

Technical
Technical
| Bore | 25mm |
|---|---|
| L | 79.4mm |
| A | 26.19mm |
| A1 | 32.94mm |
| A2 | 36.52mm |
| A3 | 40.06mm |
| B | 34.11mm |
| B1 | 27.35mm |
| B2 | 30.92mm |
| B3 | 44.4mm |
| s | 14.32mm |
| s1 | 7.56mm |
| s2 | 17.49mm |
| d1 | 34.01mm |
| d2 | 38.1mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
