SKU: SLC1.1/8DEC-RHP

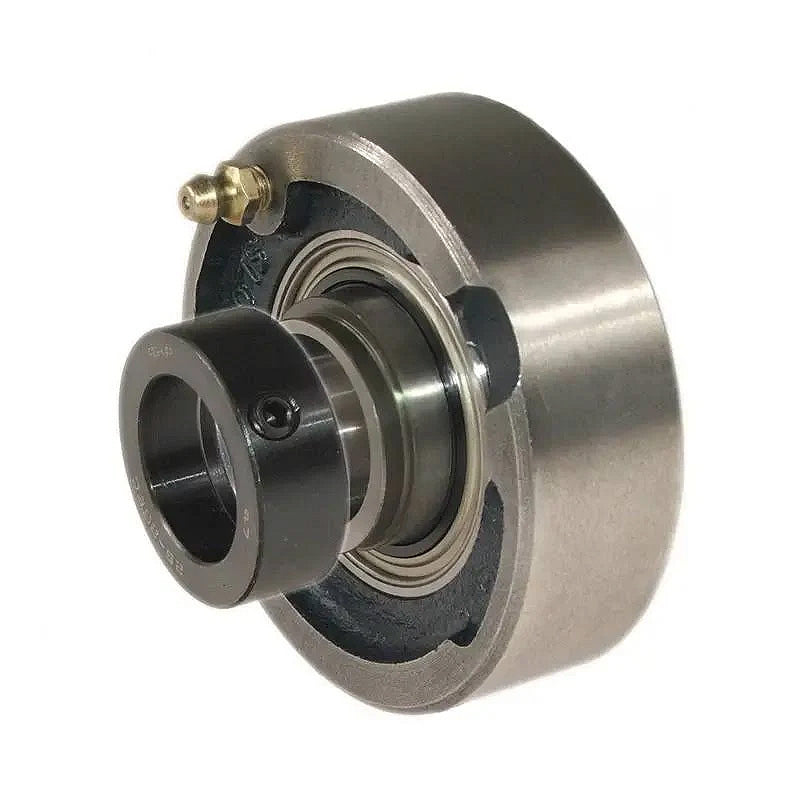

RHP SLC1-1/8DEC Cast Iron Cartridge Unit with 1-1/8 inch Bore Insert 88.93mm Outside Diameter
RHP SLC1-1/8DEC Cast Iron Cartridge Unit with 1-1/8 inch Bore Insert 88.93mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SLC DEC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 88.93mm
- Style:
- SLC
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| L | 3.501 inch |
| A | 1.094 inch |
| A3 | 1.732 inch |
| B3 | 1.906 inch |
| s2 | 0.721 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/8DECG+insonly">1030-1-1/8DECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
