• RHP SL2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert
1 1

SKU: SL2.1/2-RHP

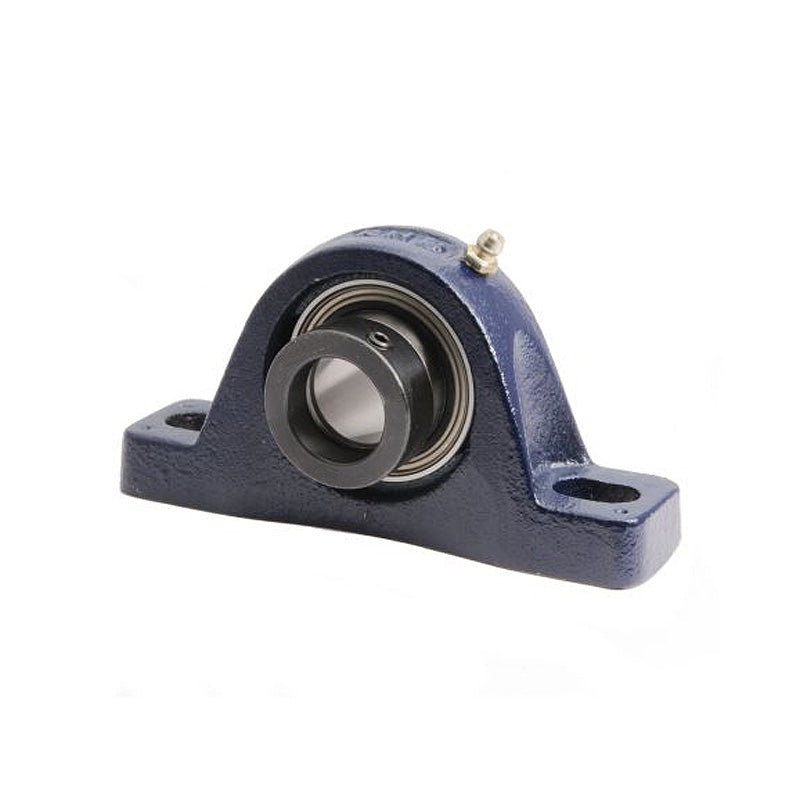

RHP SL2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert

RHP SL2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert
$421.45 ex VAT
$421.45 ex VAT
Sale Sold out

In stock

Price Break
10+ $199.85
20+ $188.62
30+ $186.37
40+ $184.13
50+ $181.88
75+ $179.64
100+ $168.41
200+ $166.16
250+ $163.92
500+ $161.67
1000+ $157.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
63.5mm = 2.5 (2-1/2) inch
Style:
SL
Bolt Hole Centres:
7.189-8.063 inch

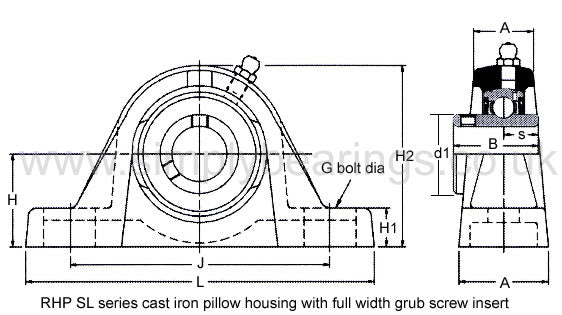

Technical
Bore 2-1/2 inch
L 9.748 inch
H 2.687 inch
H1 1.126 inch
H2 5.626 inch
J max 8.063 inch
J min 7.189 inch
G 0.625 inch
A 2.748 inch
A1 1.811 inch
B 2.562 inch
s 1.002 inch
s1 - inch
d1 3.244 inch
Dynamic load Cr 57500 N
Static load Cor 40000 N
Rec max speed 2600 rpm
Insert <a href="advanced_search_result.php?keywords=1065-2-1/2G+insonly">1065-2-1/2G Click Here</a>
Casting group 10/65
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
