SKU: SL194_IMP_NAK

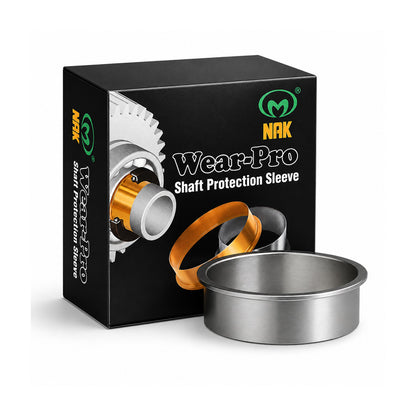

NAK SL194 Hardened Stainless Sleeve for Shafts 3.750-3.756 inch - Allow 7-10 Days
NAK SL194 Hardened Stainless Sleeve for Shafts 3.750-3.756 inch - Allow 7-10 Days
Regular price
$66.53
ex VAT
Regular price
Sale price
$66.53
ex VAT
Equivalent to: CR99372
In stock
Price Break
10+
$31.55
19+
$29.77
29+
$29.42
39+
$29.07
49+
$28.71
74+
$28.36
99+
$26.58
199+
$26.23
249+
$25.88
499+
$25.52
999+
$24.81
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.874 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 3.75 inch
- Flange Diameter:
- 4.02 inch
Technical
Technical
| Shaft Diameter Range (A) | 3.750-3.756 inch |
|---|---|
| Nominal Shaft Diameter (A) | 3.75 inch |
| Flange Diameter (D) | 4.02 inch |
| Width on Shaft (X) | 0.689 inch |
| Overall Width (Y) | 0.874 inch |
| Installation Depth (Z) | 1.799 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
