SKU: SL162_IMP_NAK

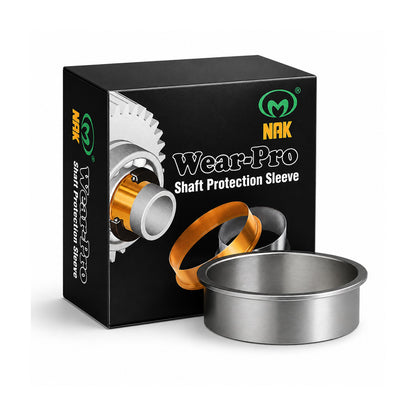

NAK SL162 Hardened Stainless Sleeve for Shafts 3.250-3.256 inch - Allow 7-10 Days
NAK SL162 Hardened Stainless Sleeve for Shafts 3.250-3.256 inch - Allow 7-10 Days
Regular price
$54.63
ex VAT
Regular price
Sale price
$54.63
ex VAT
Equivalent to: CR99324
In stock
Price Break
10+
$25.91
19+
$24.46
29+
$24.16
39+
$23.87
49+
$23.58
74+
$23.29
99+
$21.84
199+
$21.54
249+
$21.25
499+
$20.96
999+
$20.38
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.72 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 3.25 inch
- Flange Diameter:
- 3.575 inch
Technical
Technical
| Shaft Diameter Range (A) | 3.250-3.256 inch |
|---|---|
| Nominal Shaft Diameter (A) | 3.25 inch |
| Flange Diameter (D) | 3.575 inch |
| Width on Shaft (X) | 0.594 inch |
| Overall Width (Y) | 0.72 inch |
| Installation Depth (Z) | 1.374 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
