SKU: SL104_IMP_NAK

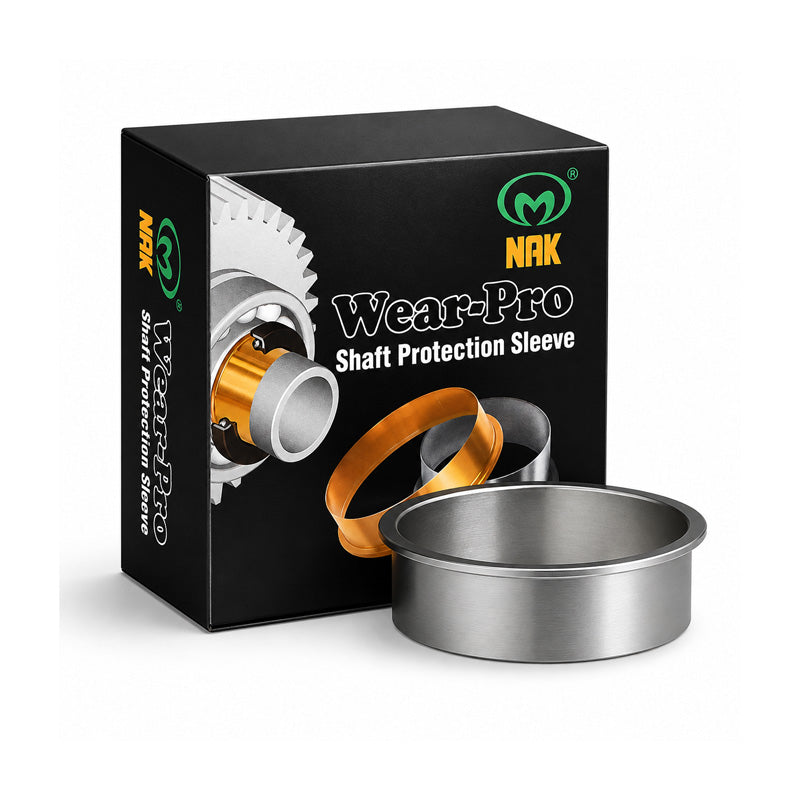

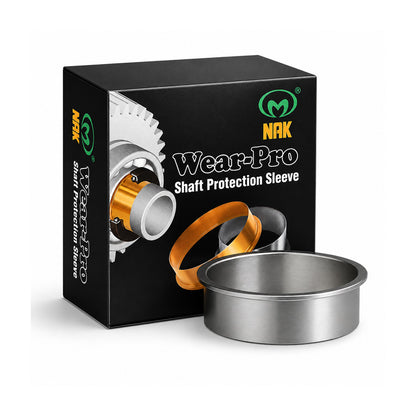

NAK SL104 Hardened Stainless Sleeve for Shafts 2.280-2.286 inch - Allow 7-10 Days
NAK SL104 Hardened Stainless Sleeve for Shafts 2.280-2.286 inch - Allow 7-10 Days
Regular price
$46.43
ex VAT
Regular price
Sale price
$46.43
ex VAT
Equivalent to: CR99219
In stock
Price Break
10+
$22.02
19+
$20.78
29+
$20.54
39+
$20.29
49+
$20.04
74+
$19.79
99+
$18.56
199+
$18.31
249+
$18.06
499+
$17.81
999+
$17.32
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.938 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 2.283 inch
- Flange Diameter:
- 2.598 inch
Technical
Technical
| Shaft Diameter Range (A) | 2.280-2.286 inch |
|---|---|
| Nominal Shaft Diameter (A) | 2.283 inch |
| Flange Diameter (D) | 2.598 inch |
| Width on Shaft (X) | 0.781 inch |
| Overall Width (Y) | 0.938 inch |
| Installation Depth (Z) | 1.375 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
