• RHP SL1-15/16 Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Grub Screw Full Width Insert
1 1

SKU: SL1.15/16-RHP

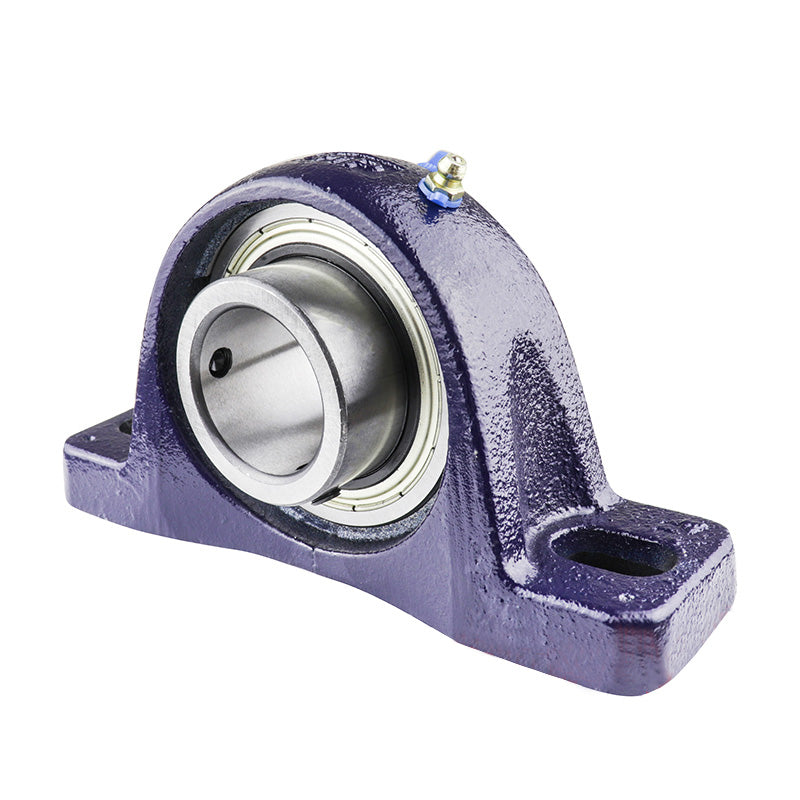

RHP SL1-15/16 Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Grub Screw Full Width Insert

RHP SL1-15/16 Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Grub Screw Full Width Insert
$157.45 ex VAT
$157.45 ex VAT
Sale Sold out

In stock

Price Break
10+ $74.66
20+ $70.47
30+ $69.63
40+ $68.79
50+ $67.95
75+ $67.11
100+ $62.92
200+ $62.08
250+ $61.24
500+ $60.40
1000+ $58.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
SL
Bolt Hole Centres:
5.945-6.969 inch
Technical
Bore 1-15/16 inch
L 8.425 inch
H 2.187 inch
H1 0.76 inch
H2 4.488 inch
J max 6.969 inch
J min 5.945 inch
G 0.5 inch
A 2.165 inch
A1 1.417 inch
B 2.031 inch
s 0.752 inch
s1 0.435 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16G+insonly">1050-1-15/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
