SKU: SL1.1/2A-RHP

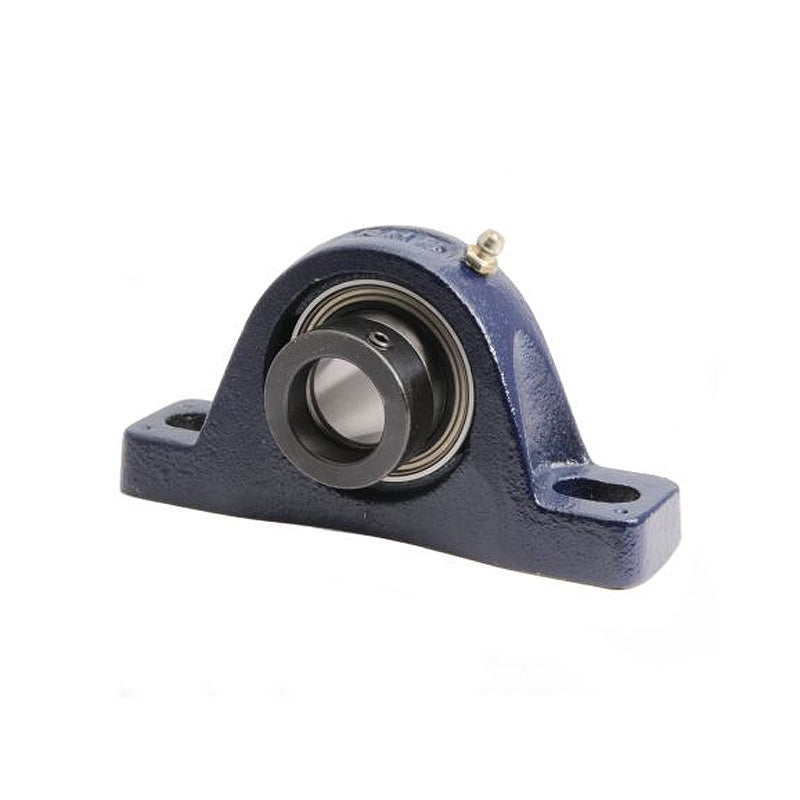

RHP SL1-1/2A Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Flat Back Insert

RHP SL1-1/2A Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Grub Screw Flat Back Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

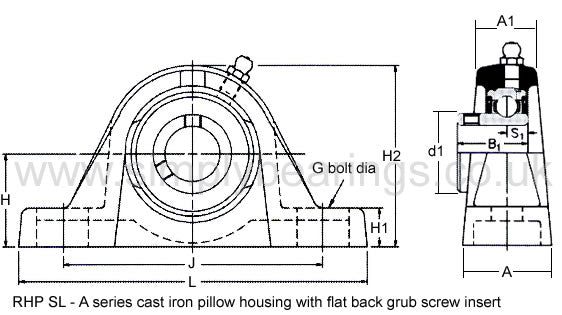

Bore 1-1/2 inch
L 7.106 inch
H 1.937 inch
H1 0.728 inch
H2 3.878 inch
J max 5.827 inch
J min 5 inch
G 0.5 inch
A 2.008 inch
A1 1.358 inch
B1 1.621 inch
s1 0.435 inch
d1 2.075 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Insert <a href="advanced_search_result.php?keywords=1245-1-1/2G+insonly">1245-1-1/2G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
