SKU: SL087_IMP_NAK

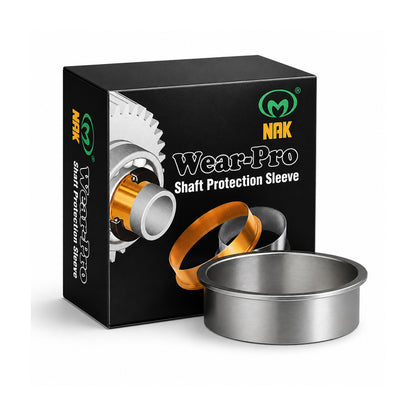

NAK SL087 Hardened Stainless Sleeve for Shafts 1.934-1.940 inch - Allow 7-10 Days
NAK SL087 Hardened Stainless Sleeve for Shafts 1.934-1.940 inch - Allow 7-10 Days
Regular price
$43.32
ex VAT
Regular price
Sale price
$43.32
ex VAT
Equivalent to: CR99193
In stock
Price Break
10+
$20.54
19+
$19.39
29+
$19.16
39+
$18.93
49+
$18.70
74+
$18.47
99+
$17.31
199+
$17.08
249+
$16.85
499+
$16.62
999+
$16.16
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.5 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.938 inch
- Flange Diameter:
- 2.22 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.934-1.940 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.938 inch |
| Flange Diameter (D) | 2.22 inch |
| Width on Shaft (X) | 0.563 inch |
| Overall Width (Y) | 0.5 inch |
| Installation Depth (Z) | 1.047 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
