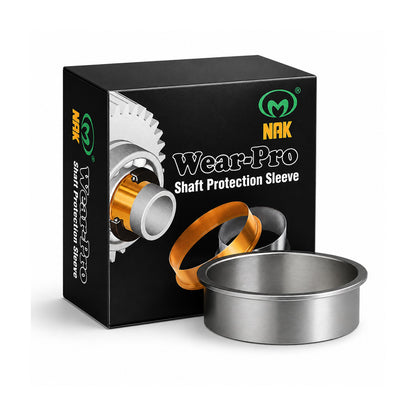

NAK SL056 Hardened Stainless Sleeve for Shafts 1.566-1.572 inch - Allow 7-10 Days
NAK SL056 Hardened Stainless Sleeve for Shafts 1.566-1.572 inch - Allow 7-10 Days
Regular price
$43.22
ex VAT
Regular price
Sale price
$43.22
ex VAT
Equivalent to: CR99159
In stock
Price Break
10+
$20.50
19+
$19.34
29+
$19.11
39+
$18.88
49+
$18.65
74+
$18.42
99+
$17.27
199+
$17.04
249+
$16.81
499+
$16.58
999+
$16.12
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.752 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.569 inch
- Flange Diameter:
- 1.858 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.566-1.572 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.569 inch |
| Flange Diameter (D) | 1.858 inch |
| Width on Shaft (X) | 0.626 inch |
| Overall Width (Y) | 0.752 inch |
| Installation Depth (Z) | 1.016 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
