SKU: SL040_IMP_NAK

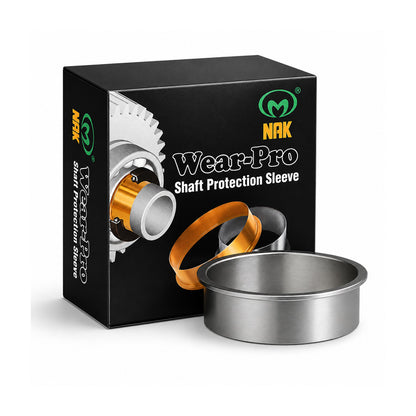

NAK SL040 Hardened Stainless Sleeve for Shafts 1.297-1.301 inch - Allow 7-10 Days
NAK SL040 Hardened Stainless Sleeve for Shafts 1.297-1.301 inch - Allow 7-10 Days
Regular price
$42.87
ex VAT
Regular price
Sale price
$42.87
ex VAT
Equivalent to: CR99121
In stock
Price Break
10+
$20.33
19+
$19.19
29+
$18.96
39+
$18.73
49+
$18.50
74+
$18.27
99+
$17.13
199+
$16.90
249+
$16.67
499+
$16.45
999+
$15.99
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.709 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 1.299 inch
- Flange Diameter:
- 1.594 inch
Technical
Technical
| Shaft Diameter Range (A) | 1.297-1.301 inch |
|---|---|
| Nominal Shaft Diameter (A) | 1.299 inch |
| Flange Diameter (D) | 1.594 inch |
| Width on Shaft (X) | 0.591 inch |
| Overall Width (Y) | 0.709 inch |
| Installation Depth (Z) | 0.813 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
